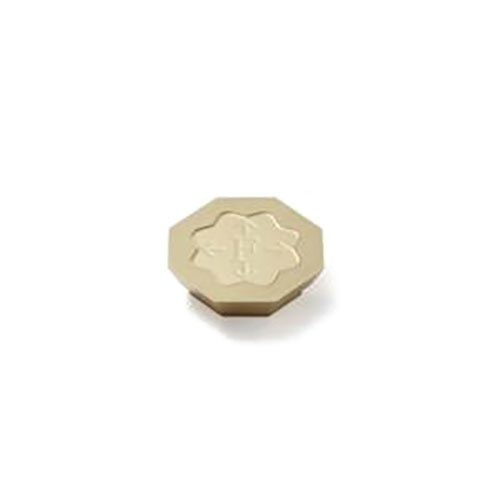

Seco Octomill Face Milling Insert Size 07 4.76 x 18.02 x 18.02mm Right Grade F30M N Type M10 Designation OFEN0704ZZR-M10,F30M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.76 x 18.02 x 18.02mm Right Grade F30M N Type M10 Designation OFEN0704ZZR-M10,F30M Pack of 10

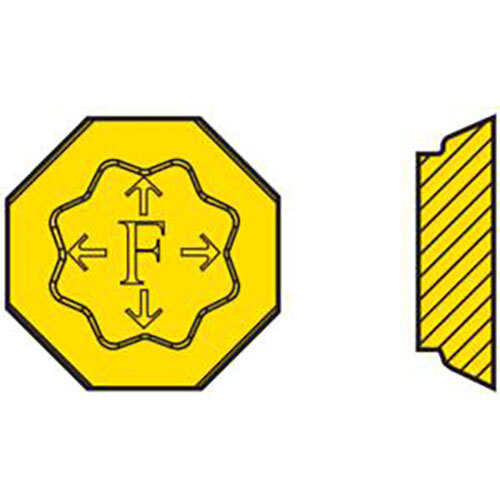

Octomill Insert Size 07 Grade F30M N Type (OFEN07ZZ-M10)

Medium machining condition.
OFEN07ZZ-M10 Insert Seat Size Code (SSC).
N type.

About F30M Grade

Basic grade for Minimaster inserts and thread milling inserts.
Also suitable for milling stainless steel, hardened steel, and superalloys.
(Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121708

Brand Seco

Model Number 00095176

Barcode Number 95176000001007

Designation OFEN0704ZZR-M10,F30M

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 4

Insert Hand (IH) Right

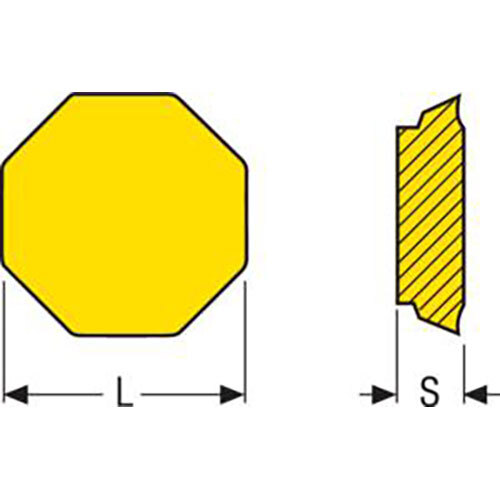

Insert Thickness (S) mm 4.76

Insert Seat Size Code (SSC) OFEN07..ZZ..-M10

Inscribed Circle Diameter (IC) mm 18.02

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 18.02

Wiper Edge Length (bs) Mm 6.5
