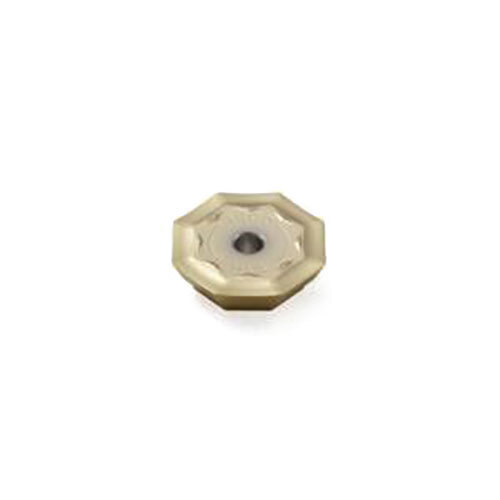

Seco Octomill Face Milling Insert Size 07 4.86 x 18.02 x 18.02mm Right Grade F40M R Type M15 Designation OFMR070405TR-M15,F40M Pack of 10

Description

Seco Octomill Face Milling Insert Size 07 4.86 x 18.02 x 18.02mm Right Grade F40M R Type M15 Designation OFMR070405TR-M15,F40M Pack of 10

Octomill Insert Size 07 Grade F40M R Type (OFMR0704)

Medium machining condition.
OFMR0704 Insert Seat Size Code (SSC).
R type.

F40M Grade

PVD-coated grade for fine to medium rough milling.
First choice for milling with small feeds and/or low cutting speeds.
Excellent for milling when there is a risk of vibrations and when coolant is used.
Recommended for machining superalloys.
(Ti, Al) N – TiN.

About Seco Octomill Insert Size 07

Cutter range 50-315 mm (2-5 inches).
Max depth of cut 5 mm (0.197 inch)
Recommended depth of cut 4 mm (0.157 inch).
8 cutting edges, single-sided inserts.

Specifications

AIMS SKU A0121671

Brand Seco

Model Number 00034261

Barcode Number 34261000001009

Type Octomill Face Milling Insert Size 07

Designation OFMR070405TR-M15,F40M

Grade F40M

Grade Type Carbide PVD

Cutting Edge Count (CEDC) 8

Insert Hand (IH) Right

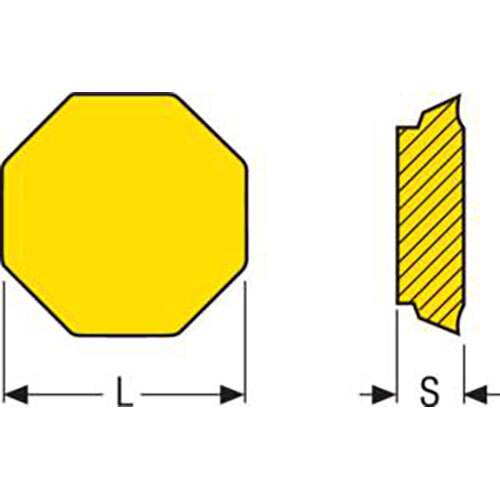

Insert Thickness (S) mm 4.86

Insert Seat Size Code (SSC) OFMR0704..

Inscribed Circle Diameter (IC) mm 18.02

Clearance Angle Major (an) Deg 26.0 deg

Theoretical Cutting Edge Length (L) mm 18.02

Wiper Edge Length (bs) Mm 1.5
