Specifications
- AIMS SKU A0113103
- Brand Seco
- Model Number 02636634
- Barcode Number 36634026001007
- Net Weight (kg) 0.002
- Type Parting Off Insert
- Designation 150.10-3L6-16 TGP45
- Grade Type Carbide CVD
- Insert Hand (IH) Left
- Cutting Width (mm) 3.1
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 6.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
- Corner Radius (RE) mm 0.19
- Insert Seat Size Code (SSC) 3
SKU: A0113103

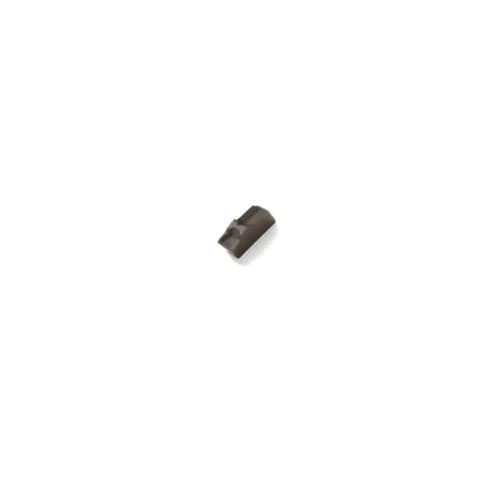

Seco Parting Off Left Insert TGP45 3.1mm 16 Chipbreaker 150.10-3L6-16,TGP45 - Pack of 10
Turning 150.10 Parting Off Left Insert
$254.54
