Description

Turning 150.10 Parting Off Right Insert ( TGP45/TGP35 - 16 Chipbreaker)

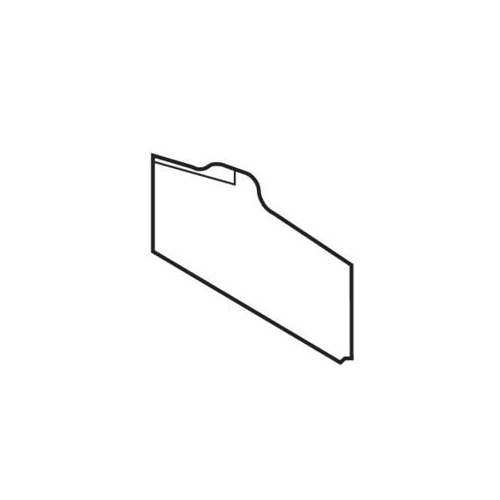

  • The right inserts have a setting angle of 6° in order to eliminate burrs and minimize the parting-off pip left on the workpiece.
  • To reduce pip size with N-inserts, use the smallest width possible.
  • The correct centre height is another major factor to avoid pips (control to ±0.1 mm).
  • When using R-/L-inserts, the feed rate should be reduced by approximately 30%.
  • Convex or concave surfaces will be avoided, when using right or left hand inserts, by reducing the feed rate.
  • Carbide CVD

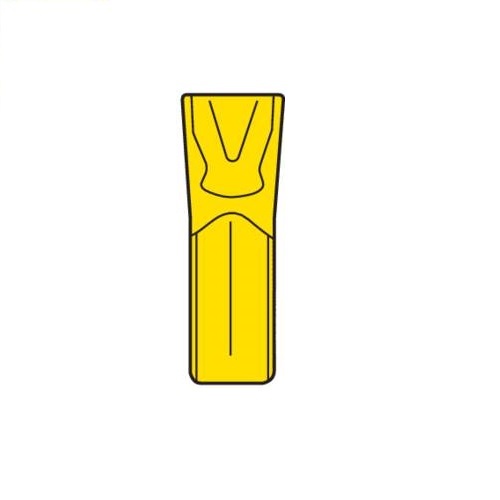

16 Chipbreaker

  • First choice for steel and cast iron in difficult conditions and/or high feed rates.
  • 20° positive cutting rake angle.
  • Strong protection chamfer.

All About Seco 150.10 Parting Off Insert:

  • Optimized for parting-off applications, the Seco 150.10 consists of a high-speed steel blade that holds the insert and a holder that retains the blade.
  • This setup provides maximum stability, while the hot strength of the high-speed steel ensures the insert will be securely retained especially when the blade is hot.
  • 150.10 is also available in combination with Jetstream Tooling® Duo.
  • A high-pressure cooling system that provides directed coolant to the cutting edge by two streams to rake and clearance surfaces.

Specifications

  • AIMS SKU A0113098
  • Brand Seco
  • Model Number 02707134
  • Barcode Number 7134027001009
  • Net Weight (kg) 0.001
  • Type Parting Off Insert
  • Designation 150.10-3R6-16 TGP35
  • Grade Type Carbide CVD
  • Insert Hand (IH) Right
  • Cutting Width (CW) mm 3.1
  • Insert Length (INSL) mm 9
  • Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
  • Cutting Edge Angle Major Right Hand (PSIRR) 6.0 deg
  • Corner Radius (RE) mm 0.19
  • Insert Seat Size Code (SSC) 3
SKU: A0113098 On Sale

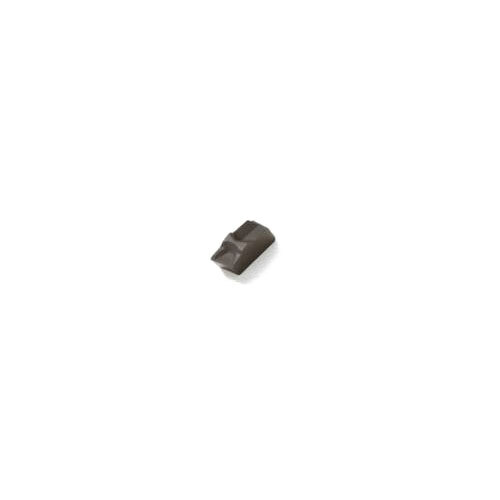

Seco Parting Off Right Insert TGP35 3.1mm 16 Chipbreaker 150.10-3R6-16,TGP35 - Pack of 10

Turning 150.10 Parting Off Right Insert

$216.36
$254.54
