Description

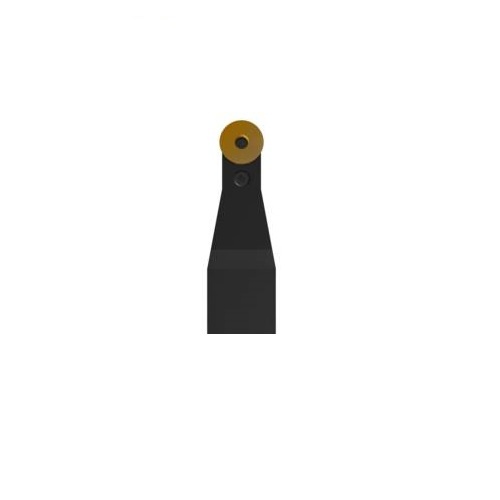

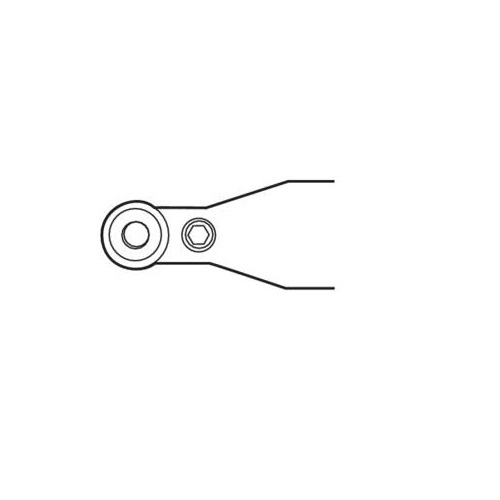

Seco Turning External Toolholder Pin Lock Neutral 45° R Insert Shape PRDCN3232P20

Turning External Toolholder (Pin Lock - D Type - R Insert Shape)

  • Pin Lock - Pin lock assembly, (NL/PL tool holders).
  • R insert shape.
  • N tool type, straight shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115237
  • Brand Seco
  • Model Number 02751641
  • Barcode Number 51641027000105
  • Net Weight (kg) 1.194
  • Designation PRDCN3232P20

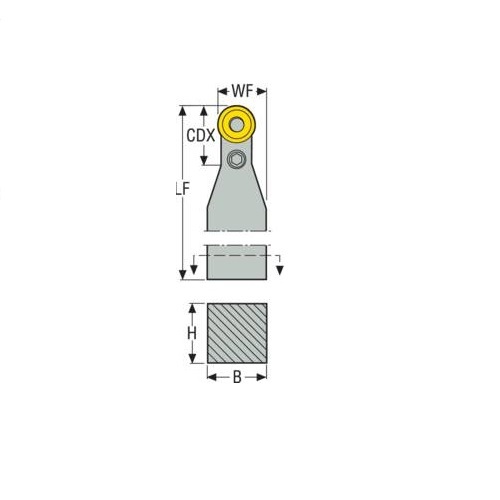

  • Functional Length (LF) 170mm
  • Insert Shape Code (SC) R
  • Head Length (LH) 33.5mm
  • Functional Width (WF) mm 26
  • Cutting Edge Length (mm) 20
  • Inclination Angle (LAMS) -8.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) D
  • Tool Type D Type
  • Height Of Tool Holder Shank (H) mm 32
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Cutting Depth Maximum (cdx) mm 33.5
  • Connection Text Workpiece Side (ctws) RC2006
  • Shank Width (b) mm 32
  • Direction Of Cutting (hand) Neutral
  • Connection Text Machine Side (CTMS) 3232
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Pin Lock

Video

SKU: A0115237

Seco Turning External Toolholder Pin Lock 170 x 26 x 32mm Neutral 45° R Insert Shape PRDCN3232P20

Pin Lock - D Type - R Insert Shape

$223.52
RRP $279.40
SAVE $55.88 (20%)
