Specifications

AIMS SKU A0115241
Brand Seco
Model Number 00015030
Barcode Number 15030000000108
Net Weight (kg) 1.8
Designation PROON-20-8

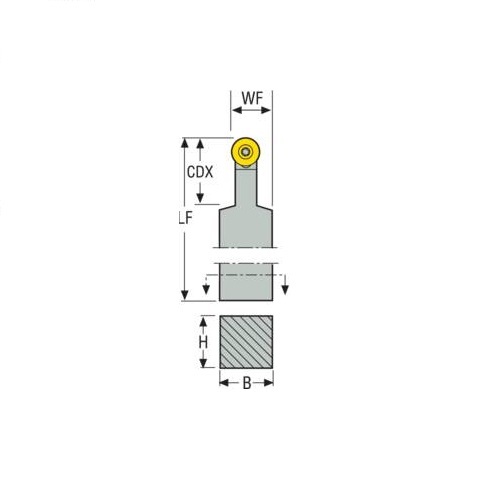

Functional Length (LF) 254mm
Functional Width (mm) 28.6
Insert Shape Code (SC) R
Insert Size Inscribed Circle Diameter (mm) 8
Functional Width (WF) mm 28.6
Cutting Edge Length (mm) 8
Inclination Angle (LAMS) 0.0 deg
Tool Cutting Edge Angle Code (KAPRC) O
Tool Type O Type
Height Of Tool Holder Shank (H) mm 31.8
Tool Cutting Edge Angle (KAPR) 90.0 deg
Cutting Depth Maximum (cdx) mm 63.5
Connection Text Workpiece Side (ctws) RC2506
Shank Width (b) mm 31.8
Direction Of Cutting (hand) Neutral
Connection Text Machine Side (CTMS) 31.75
Rake Angle Axial (gamp) 0.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg

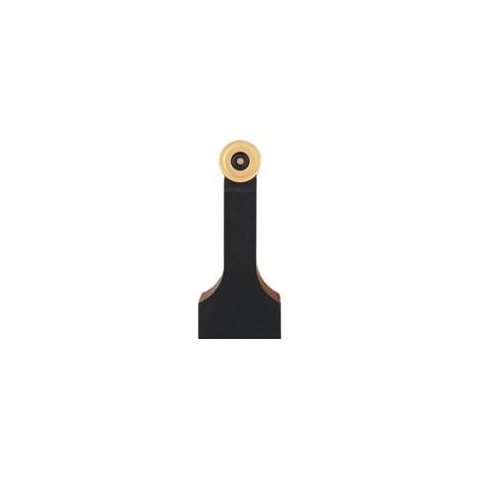

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Pin Lock
