Seco Pin Lock Right - L Type - W Insert Shape - SECO

Description

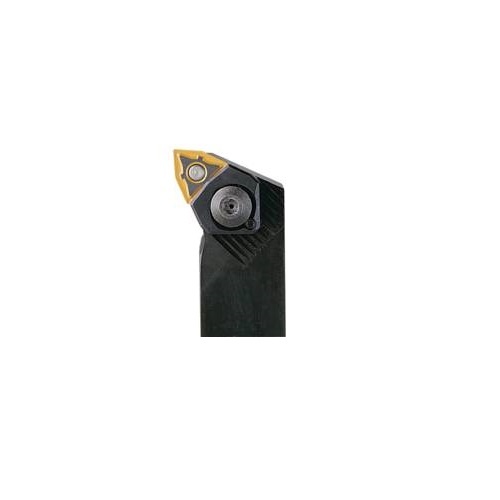

Seco Turning External Toolholder Pin Lock Right 95° W Insert Shape PWLNR1616H06

Turning External Toolholder (Pin Lock - L Type - W Insert Shape)

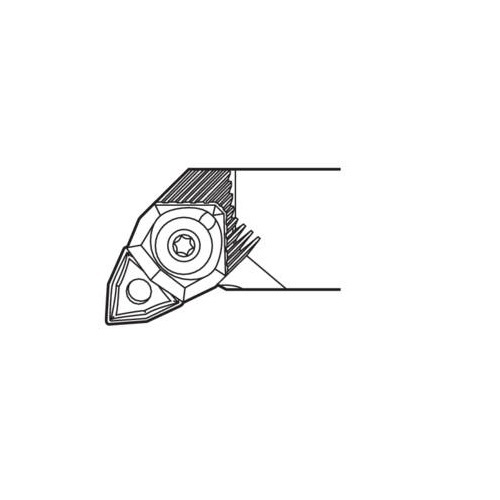

Pin Lock - Pin lock assembly, (NL/PL tool holders).
W insert shape.
L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115317

Brand Seco

Model Number 75079504

Barcode Number 79504750000100

Net Weight (kg) 0.197

Designation PWLNR1616H06

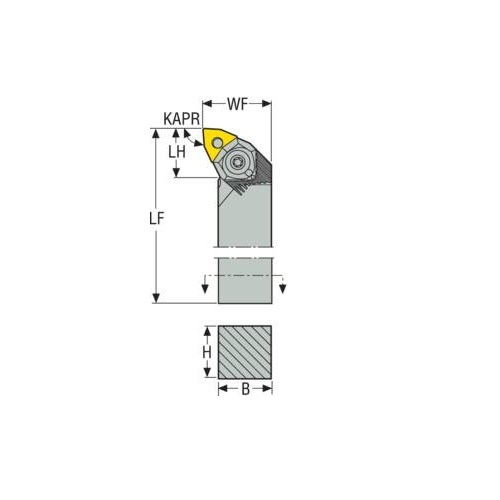

Functional Length (LF) 100mm

Insert Shape Code (SC) W

Head Length (LH) 21mm

Functional Width (WF) mm 20

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Tool Type L Type

Height Of Tool Holder Shank (H) mm 16

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) WN0604

Shank Width (b) mm 16

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 1616

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Pin Lock
