Seco Pin Lock Right - N Type - T Insert Shape - SECO

Description

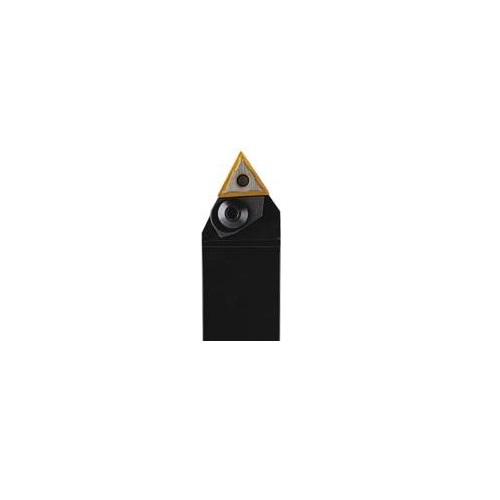

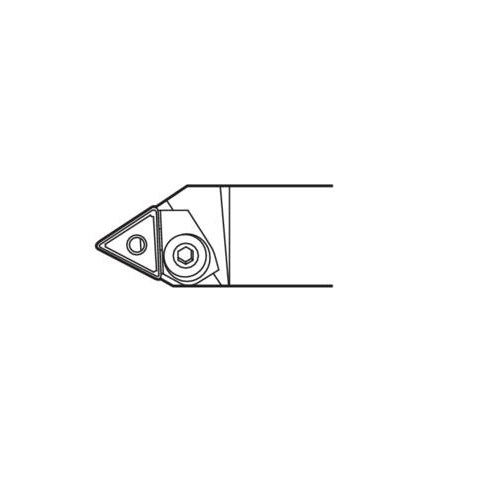

Seco Turning External Toolholder Pin Lock Right 63° T Insert Shape PTNNR3225P16

Turning External Toolholder (Pin Lock - N Type - T Insert Shape)

Pin Lock - Pin lock assembly, (NL/PL tool holders).
T insert shape.
N tool type.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115303

Brand Seco

Model Number 00092433

Barcode Number 92433000000106

Net Weight (kg) 0.987

Designation PTNNR3225P16

Functional Length (LF) 170mm

Insert Shape Code (SC) T

Head Length (LH) 28mm

Functional Width (WF) mm 13

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -5.0 deg

Tool Cutting Edge Angle Code (KAPRC) N

Tool Type N Type

Height Of Tool Holder Shank (H) mm 32

Tool Cutting Edge Angle (KAPR) 63.0 deg

Connection Text Workpiece Side (ctws) TN1604

Shank Width (b) mm 25

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 3225

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Pin Lock
