Seco Screw Lock - B Type - S Insert Shape - SECO

Description

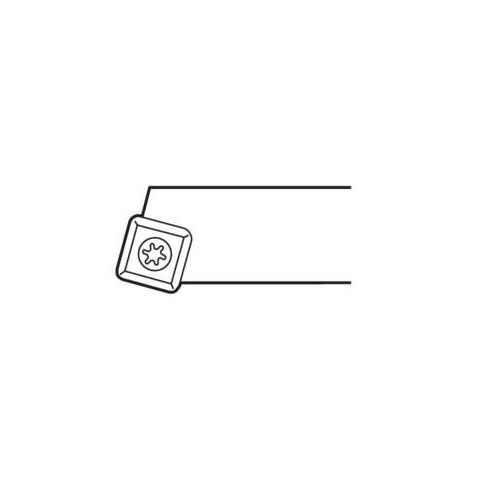

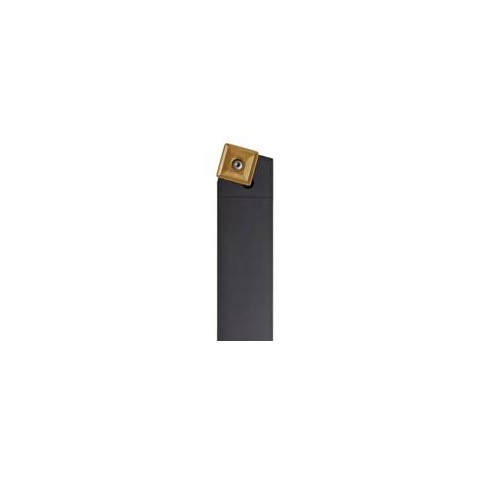

Seco Turning External Toolholder Screw Lock Right 75° S Insert Shape SSBCR5050T38

Turning External Toolholder (Screw Lock - B Type - S Insert Shape)

Screw lock.
S insert shape.

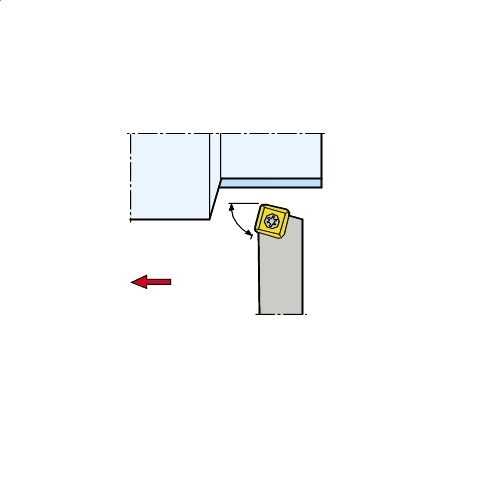

B tool type, straight shank with 15° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115493

Brand Seco

Model Number 02785005

Barcode Number 85005027000102

Net Weight (kg) 5.594

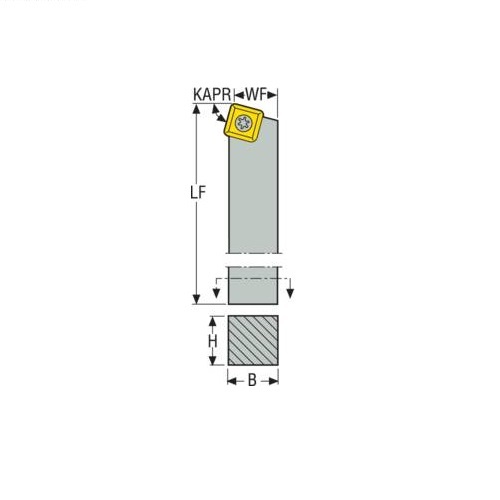

Designation SSBCR5050T38

Rake Angle Orthogonal (gamo) 0.0 deg

Connection Text Machine Side (CTMS) 5050

Direction Of Cutting (hand) Right

Shank Width (b) mm 50

Connection Text Workpiece Side (ctws) SC3809

Tool Cutting Edge Angle (KAPR) 75.0 deg

Height Of Tool Holder Shank (H) mm 50

Functional Length (LF) 300mm

Tool Type B Type

Tool Cutting Edge Angle Code (KAPRC) B

Inclination Angle (LAMS) 0.0 deg

Cutting Edge Length (mm) 38

Functional Width (WF) mm 43

Insert Shape Code (SC) S

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Screw Lock
