Specifications
- AIMS SKU A0115448
- Brand Seco
- Model Number 00071932
- Barcode Number 71932000000101
- Net Weight (kg) 0.216
- Designation SRDCN-10-06

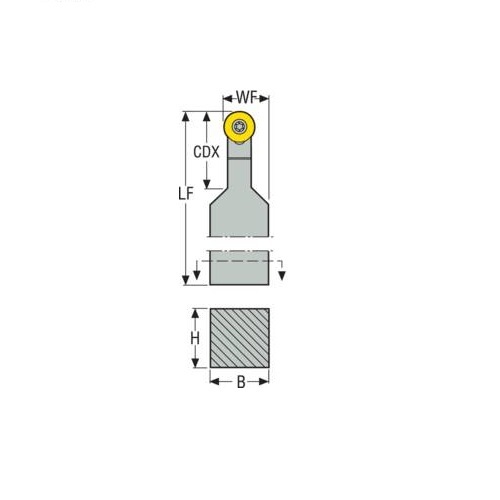

- Height Of Tool Holder Shank (H) mm 15.9
- Insert Shape Code (SC) R
- Insert Size Inscribed Circle Diameter (mm) 6
- Functional Width (WF) mm 13.5
- Cutting Edge Length (mm) 6
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) D
- Tool Type D Type
- Functional Length (LF) 101.6mm
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Cutting Depth Maximum (cdx) mm 16
- Connection Text Workpiece Side (ctws) RC0602
- Shank Width (b) mm 15.9
- Direction Of Cutting (hand) Neutral
- Connection Text Machine Side (CTMS) 15.88
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115448

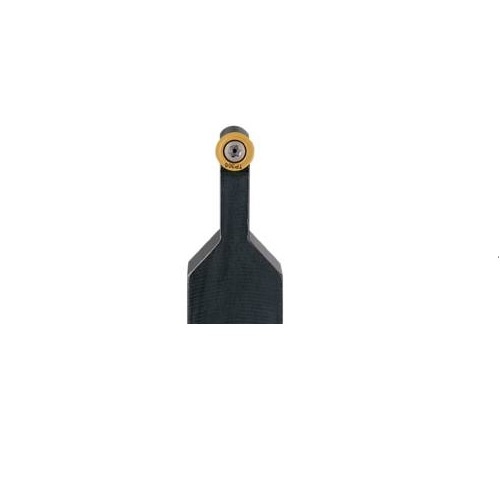

Seco Turning External Toolholder Screw Lock 101.6 x 13.5 x 6mm Neutral 90° R Insert Shape SRDCN-10-06
Screw Lock - D Type - R Insert Shape
$146.96
SAVE $36.74 (20%)
