Specifications
- AIMS SKU A0115514
- Brand Seco
- Model Number 00013379
- Barcode Number 13379000000100
- Net Weight (kg) 0.24
- Designation STGCL-10-3

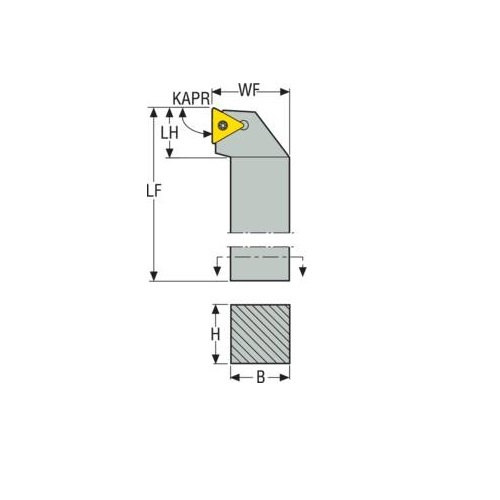

- Functional Length (LF) 101.6mm
- Insert Shape Code (SC) T
- Insert Size Inscribed Circle Diameter (mm) 3
- Functional Width (WF) mm 19.1
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) G
- Tool Type G Type
- Height Of Tool Holder Shank (H) mm 15.9
- Tool Cutting Edge Angle (KAPR) 90.0 deg
- Connection Text Workpiece Side (ctws) TC16T3
- Shank Width (b) mm 15.9
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 15.88
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115514

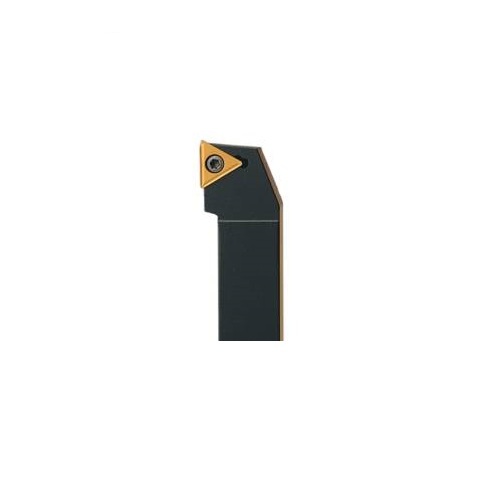

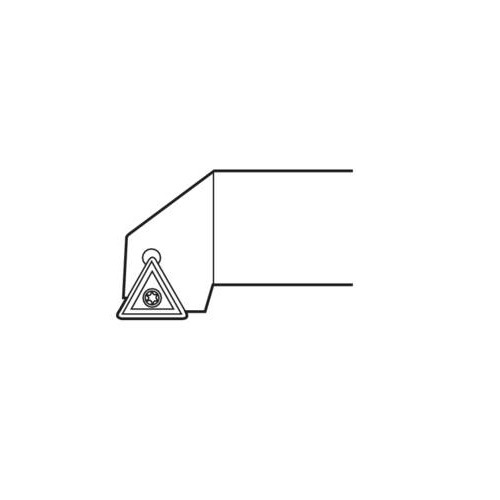

Seco Turning External Toolholder Screw Lock 101.6 x 19.1 x 3mm Left 90° T Insert Shape STGCL-10-3
Screw Lock - G Type - T Insert Shape
$146.96
SAVE $36.74 (20%)
