Specifications
- AIMS SKU A0115431
- Brand Seco
- Model Number 75011275
- Barcode Number 11275750000105
- Net Weight (kg) 0.363
- Designation SDJCL2020K11

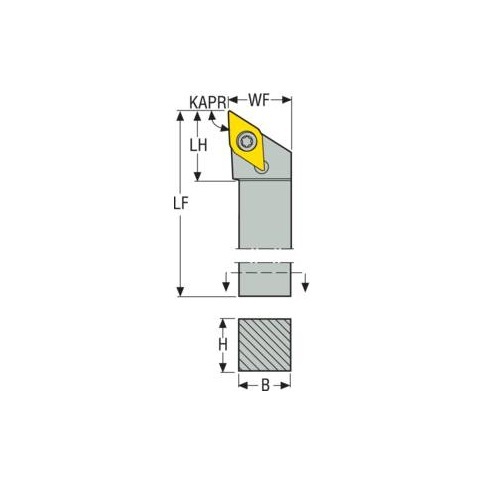

- Functional Length (LF) 125mm
- Insert Shape Code (SC) D
- Head Length (LH) 20mm
- Functional Width (WF) mm 25
- Cutting Edge Length (mm) 11
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Height Of Tool Holder Shank (H) mm 20
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Connection Text Workpiece Side (ctws) DC11T3
- Shank Width (b) mm 20
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 2020
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115431

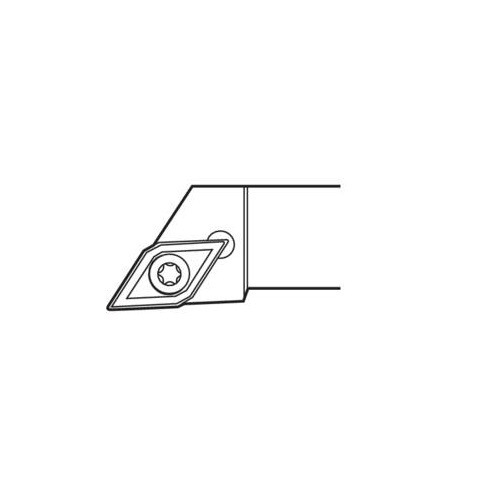

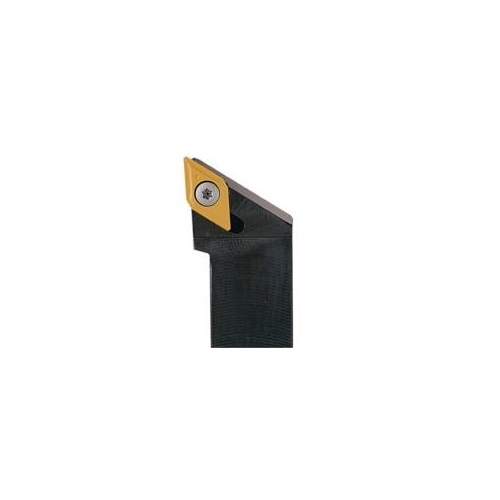

Seco Turning External Toolholder Screw Lock 125 x 20 x 11mm Left 93° D Insert Shape SDJCL2020K11
Screw Lock - J Type - D Insert Shape - 11mm Cutting Edge
$164.56
SAVE $41.14 (20%)
