Seco Screw Lock Left - J Type - V Insert Shape - 5° ISCA - SECO

Description

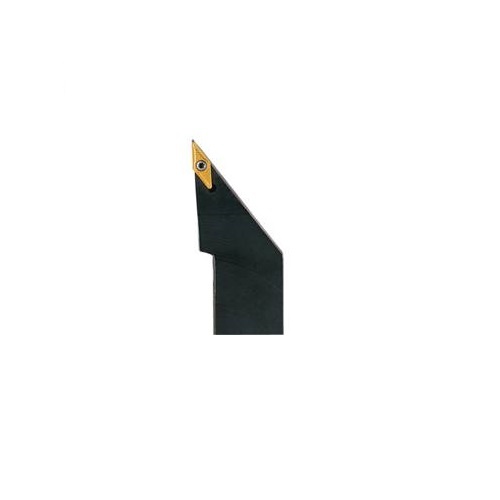

Seco Turning External Toolholder Screw Lock Left 93° V Insert Shape SVJBL1010M11

Turning External Toolholder (Screw Lock - J Type - V Insert Shape - 5° ISCA)

Screw lock.
5° Insert side clearance angle.
V insert shape.
J tool type, offset shank with –3° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115544

Brand Seco

Model Number 02431007

Barcode Number 31007024000108

Net Weight (kg) 0.107

Designation SVJBL1010M11

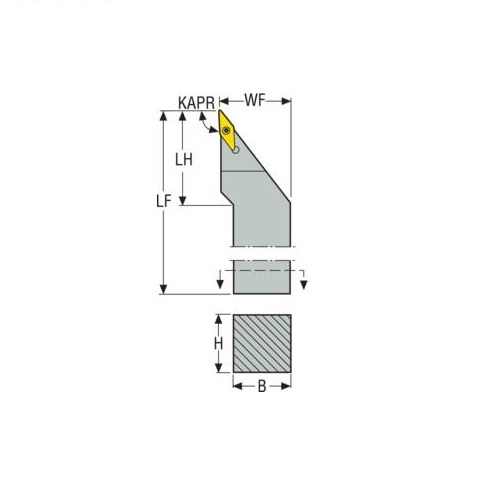

Functional Length (LF) 150mm

Insert Shape Code (SC) V

Head Length (LH) 20mm

Functional Width (WF) mm 10

Cutting Edge Length (mm) 11

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) J

Tool Type J Type

Height Of Tool Holder Shank (H) mm 10

Tool Cutting Edge Angle (KAPR) 93.0 deg

Connection Text Workpiece Side (ctws) VB1102

Shank Width (b) mm 10

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 1010

Rake Angle Orthogonal (gamo) 0.0 deg
