Seco Screw Lock Left - L Type - C Insert Shape - SECO

Description

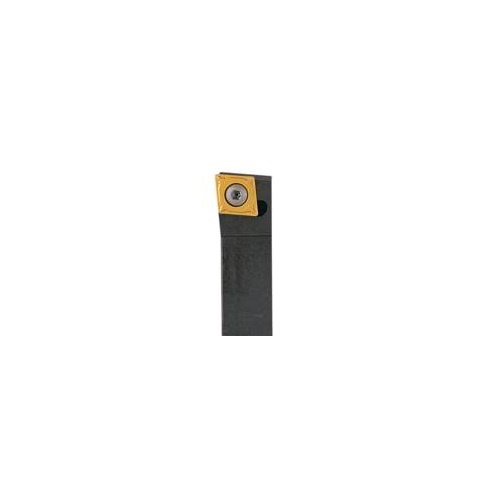

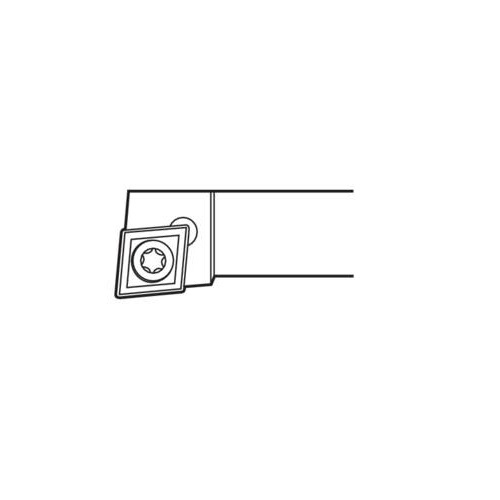

Seco Turning External Toolholder Screw Lock Left 95° C Insert Shape SCLCL0808K06

Turning External Toolholder (Screw Lock - L Type - C Insert Shape)

Screw lock.
C insert shape.
L tool type, offset shank with –5° end or side cutting edge.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115370

Brand Seco

Model Number 02435781

Barcode Number 35781024000103

Net Weight (kg) 0.067

Designation SCLCL0808K06

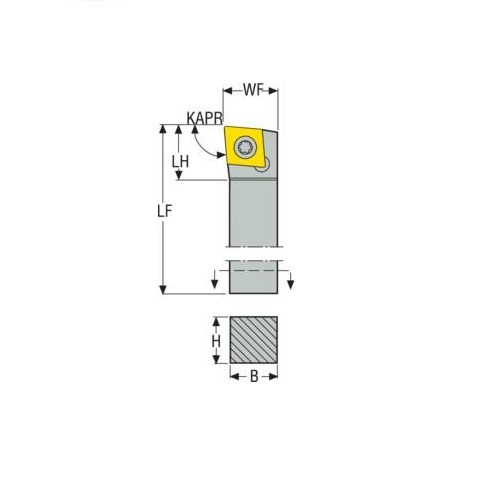

Functional Length (LF) 125mm

Insert Shape Code (SC) C

Head Length (LH) 9mm

Functional Width (WF) mm 8.5

Cutting Edge Length (mm) 6

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Tool Type L Type

Height Of Tool Holder Shank (H) mm 8

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CC0602

Shank Width (b) mm 8

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 808

Rake Angle Orthogonal (gamo) 0.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Screw Lock
