Specifications

AIMS SKU A0115515
Brand Seco
Model Number 00013378
Barcode Number 13378000000103
Net Weight (kg) 0.257
Designation STGCR-10-3

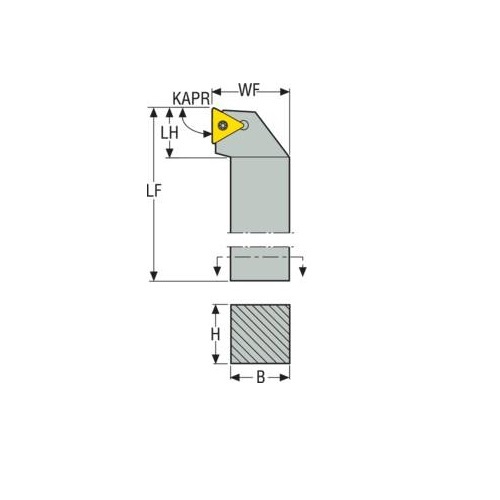

Height Of Tool Holder Shank (H) mm 15.9
Insert Shape Code (SC) T
Insert Size Inscribed Circle Diameter (mm) 3
Functional Width (WF) mm 19.1
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) 0.0 deg
Tool Cutting Edge Angle Code (KAPRC) G
Tool Type G Type
Functional Length (LF) 101.6mm
Shank Length (LS) mm 80
Tool Cutting Edge Angle (KAPR) 90.0 deg
Functional Height (HF) mm 15.9
Connection Text Workpiece Side (ctws) TC16T3
Shank Width (b) mm 15.9
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 15.88
Rake Angle Axial (gamp) 0.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg
Rake Angle Radial (gamf) 0.0 deg

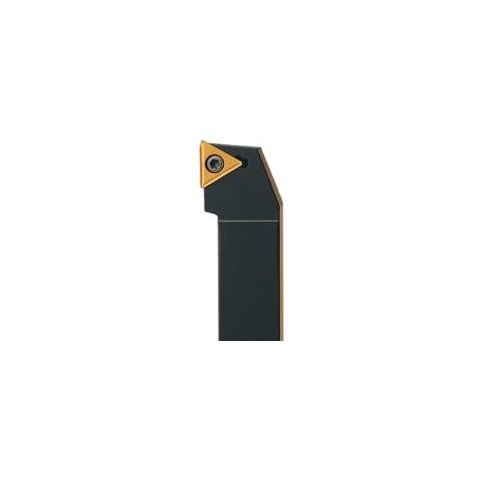

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Screw Lock
