Description

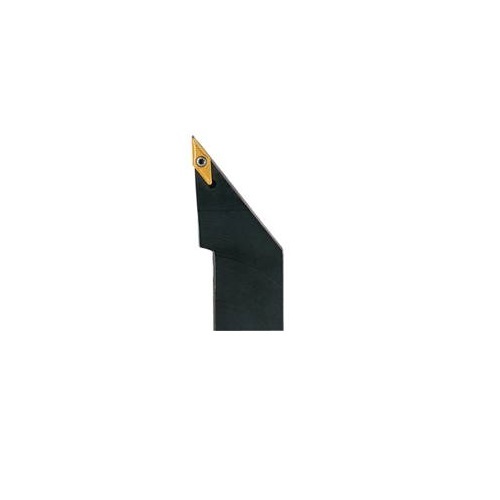

Seco Turning External Toolholder Screw Lock Right 93° V Insert Shape SVJBR1616H11

Turning External Toolholder (Screw Lock - J Type - V Insert Shape - 11mm Cutting Edge Length)

  • Screw lock.
  • 11mm cutting edge length.
  • V insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115555
  • Brand Seco
  • Model Number 75066240
  • Barcode Number 66240750000103
  • Net Weight (kg) 0.178
  • Designation SVJBR1616H11

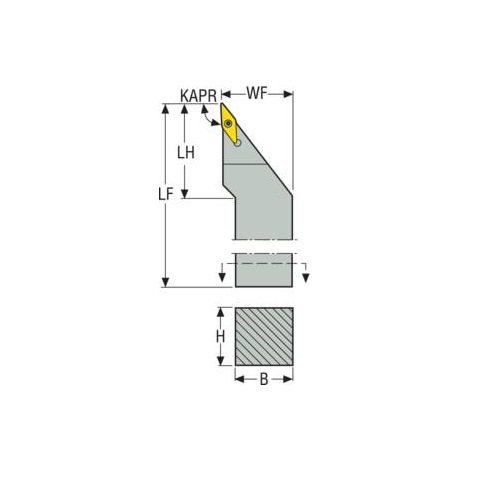

  • Functional Length (LF) 100mm
  • Insert Shape Code (SC) V
  • Head Length (LH) 27mm
  • Functional Width (WF) mm 20
  • Cutting Edge Length (mm) 11
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 16
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) VB1102
  • Shank Width (b) mm 16
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 1616
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0115555

Seco Turning External Toolholder Screw Lock 100 x 27 x 11mm Right 93° V Insert Shape SVJBR1616H11

Screw Lock - J Type - V Insert Shape

$181.28
RRP $226.60
SAVE $45.32 (20%)
