Description

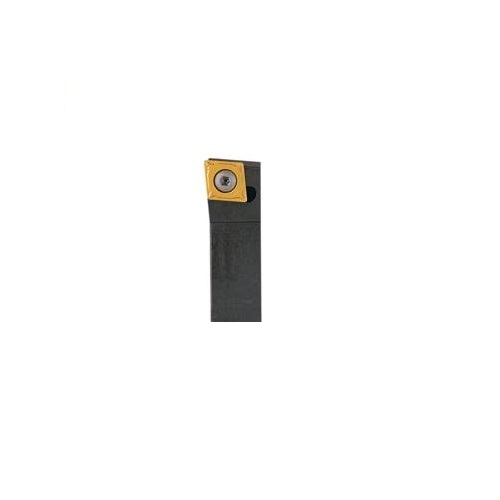

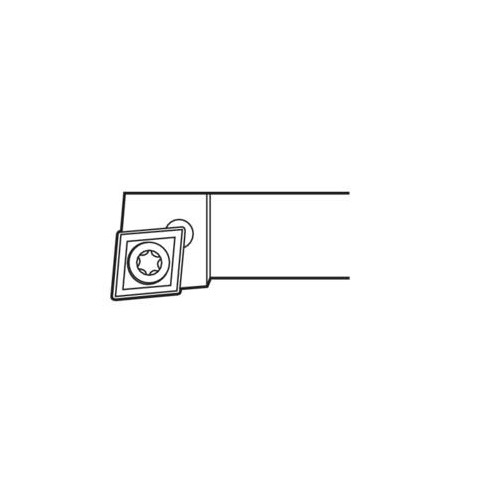

Seco Turning External Toolholder Screw Lock Right 95° C Insert Shape SCLCR2020K09

Turning External Toolholder (Screw Lock - L Type - C Insert Shape - 20mm LH)

  • Screw lock.
  • C insert shape.
  • L tool type, offset shank with –5° end or side cutting edge.
  • 20mm (LH) Head Length and 20mm (H) Height of Tool Holder Shank .

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115380
  • Brand Seco
  • Model Number 00092187
  • Barcode Number 92187000000108
  • Net Weight (kg) 0.39

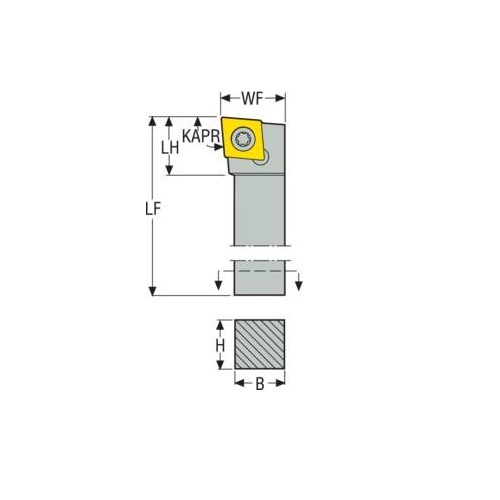

  • Designation SCLCR2020K09
  • Functional Length (LF) 125mm
  • Insert Shape Code (SC) C
  • Head Length (LH) 20mm
  • Functional Width (WF) mm 25
  • Cutting Edge Length (mm) 9
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) L
  • Tool Type L Type
  • Height Of Tool Holder Shank (H) mm 20
  • Tool Cutting Edge Angle (KAPR) 95.0 deg
  • Connection Text Workpiece Side (ctws) CC09T3
  • Shank Width (b) mm 20
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2020
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Screw Lock

Video

SKU: A0115380

Seco Turning External Toolholder Screw Lock 125 x 20 x 9mm Right 95° C Insert Shape SCLCR2020K09

Screw Lock - L Type - C Insert Shape - 20mm LH

$164.56
RRP $205.70
SAVE $41.14 (20%)
