Specifications
- AIMS SKU A0115359
- Brand Seco
- Model Number 00071951
- Barcode Number 71951000000102
- Net Weight (kg) 0.058
- Designation SCLCR-6-2

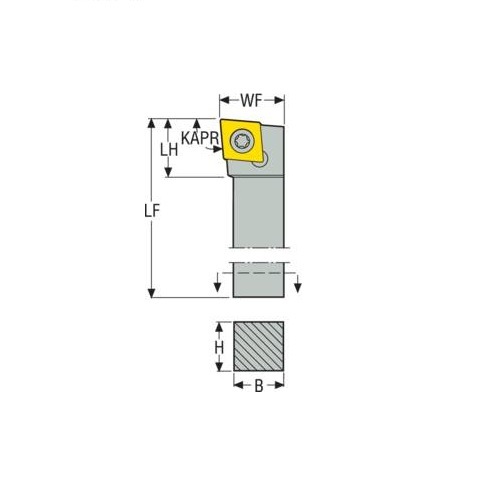

- Shank Length (LS) mm 51.3
- Insert Shape Code (SC) C
- Insert Size Inscribed Circle Diameter (mm) 2
- Functional Width (WF) mm 12.7
- Cutting Edge Length (mm) 2
- Inclination Angle (LAMS) 0.0 deg
- Tool Cutting Edge Angle Code (KAPRC) L
- Tool Type L Type
- Functional Length (LF) 63.5mm
- Height Of Tool Holder Shank (H) mm 9.5
- Tool Cutting Edge Angle (KAPR) 95.0 deg
- Functional Height (HF) mm 9.5
- Connection Text Workpiece Side (ctws) CC0602
- Shank Width (b) mm 9.5
- Direction Of Cutting (hand) Right
- Connection Text Machine Side (CTMS) 0
- Rake Angle Axial (gamp) 0.0 deg
- Rake Angle Orthogonal (gamo) 0.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Screw Lock
SKU: A0115359

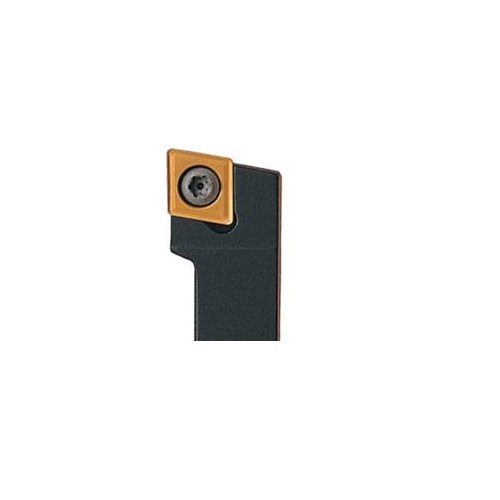

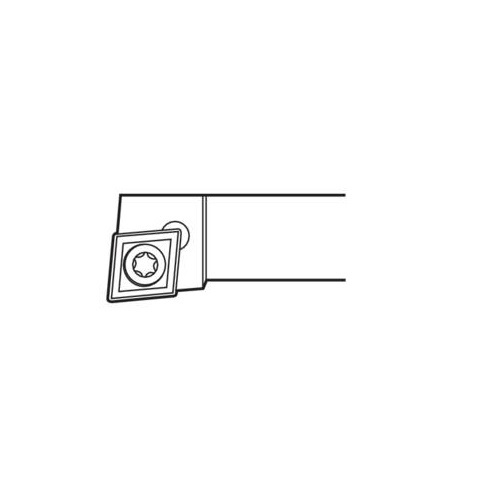

Seco Turning External Toolholder Screw Lock 63.5 x 12.7 x 2mm Right 95° C Insert Shape SCLCR-6-2
Screw Lock - L Type - C Insert Shape - 2mm I.C.
$146.96
SAVE $36.74 (20%)
