Description

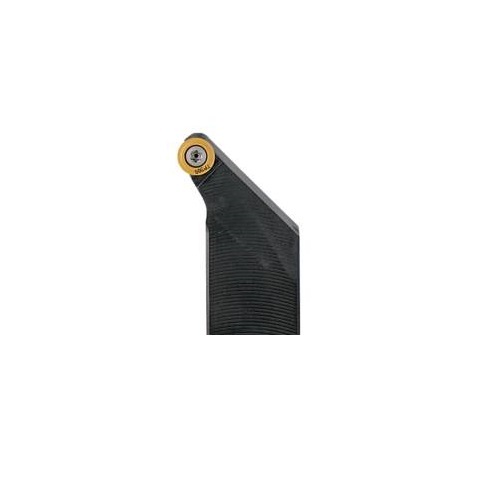

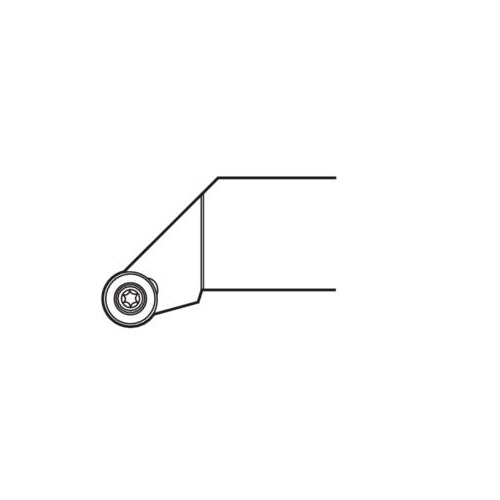

Seco Turning External Toolholder Screw Lock Right 45° R Insert Shape SRSCR2020K06

Turning External Toolholder (Screw Lock - S Type - R Insert Shape)

  • Screw lock.
  • R insert shape.
  • S tool type, offset shank with 45° side cutting edge angle.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115484
  • Brand Seco
  • Model Number 00092191
  • Barcode Number 92191000000105
  • Net Weight (kg) 0.323
  • Designation SRSCR2020K06
  • Functional Length (LF) 125mm
  • Insert Shape Code (SC) R
  • Head Length (LH) 15mm
  • Functional Width (WF) mm 25
  • Cutting Edge Length (mm) 6
  • Inclination Angle (LAMS) 0.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) S
  • Tool Type S Type
  • Height Of Tool Holder Shank (H) mm 20
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) RC0602
  • Shank Width (b) mm 20
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2020
  • Rake Angle Orthogonal (gamo) 0.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Screw Lock
SKU: A0115484

Seco Turning External Toolholder Screw Lock 125 x 15 x 6mm Right 45° R Insert Shape SRSCR2020K06

Screw Lock - S Type - R Insert Shape

$164.56
RRP $205.70
SAVE $41.14 (20%)
