Specifications
- AIMS SKU A0113900
- Brand Seco
- Model Number 02462820
- Barcode Number 62820024000103
- Net Weight (kg) 0.175
- Designation SD103-11.50/11.99-30-16R7
- Functional Length Secondary (LFS) mm 53
- Cutting Diameter Minimum (DCN) mm 11.5
- Usable Length (LU) mm 30
- Overall Length (OL) mm 101
- Flange Diameter (DF) mm 20
- Body Diameter (BD) X Shank Diameter (DMM) mm 11 x 16
- Shank Length (LS) mm 48
- Cutting Diameter Maximum (dcx) 12
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Usable Length Maximum (LUX) mm 38
- Type SD103 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113900

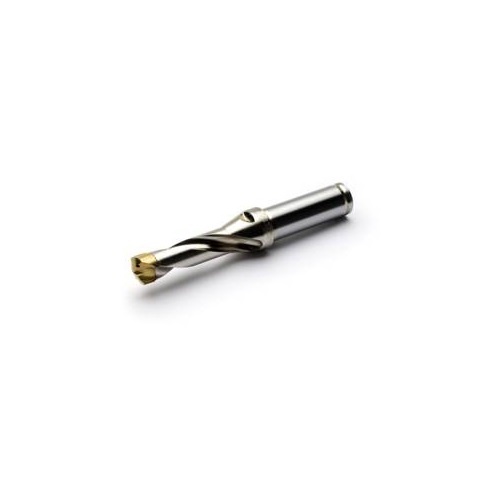

Seco SD103 Crownloc™ Exchangeable Tip Drill 11 x 16 x 101mm SD103-11.50/11.99-30-16R7
SD103 Crownloc™ Exchangeable Tip Drill
$404.22
SAVE $62.18 (13%)
