Specifications
- AIMS SKU A0113902
- Brand Seco
- Model Number 02445799
- Barcode Number 45799024000105
- Net Weight (kg) 0.187

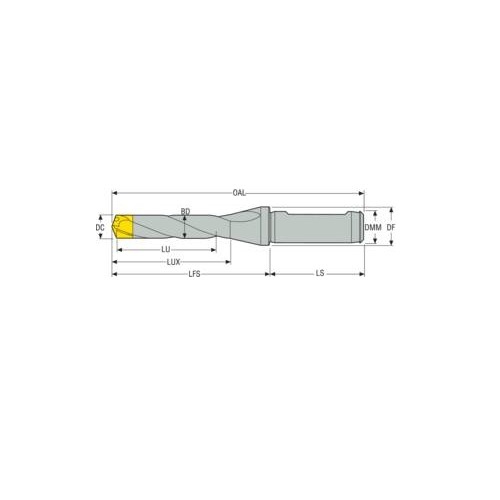

- Designation SD103-12.00/12.49-40-16R7
- Usable Length Maximum (LUX) mm 48
- Shank Length (LS) mm 48
- Usable Length (LU) mm 40
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Body Diameter (BD) X Shank Diameter (DMM) mm 11.5 x 16
- Cutting Diameter Minimum (DCN) mm 12
- Cutting Diameter Maximum (dcx) 12.5
- Flange Diameter (DF) mm 20
- Functional Length Secondary (LFS) mm 68
- Overall Length (OL) mm 116
- Type SD103 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113902

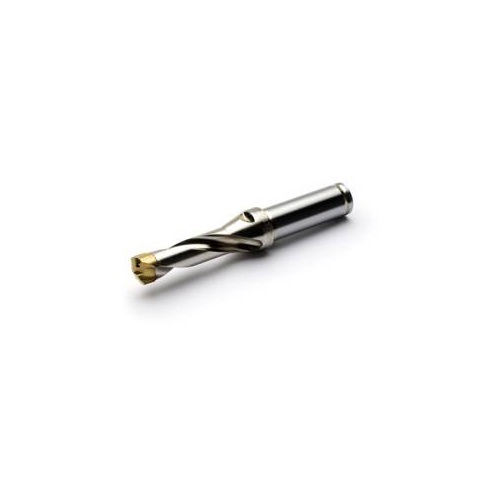

Seco SD103 Crownloc™ Exchangeable Tip Drill 11.5 x 16 x 116mm SD103-12.00/12.49-40-16R7
SD103 Crownloc™ Exchangeable Tip Drill
$404.22
SAVE $62.18 (13%)
