Specifications
- AIMS SKU A0113894
- Brand Seco
- Model Number 02462815
- Barcode Number 62815024000109
- Net Weight (kg) 0.164
- Designation SD103-10.00/10.49-30-16R7

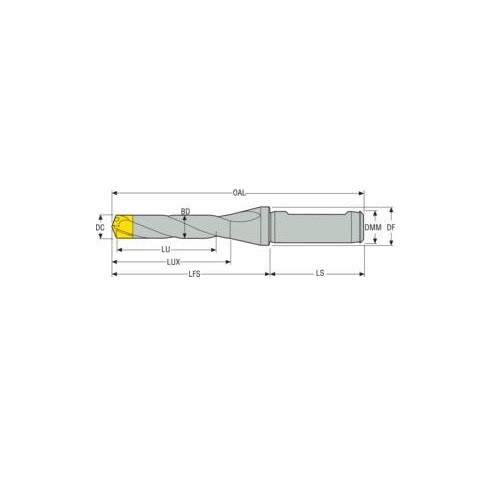

- Usable Length Maximum (LUX) mm 38
- Shank Length (LS) mm 48
- Usable Length (LU) mm 30
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Body Diameter (BD) X Shank Diameter (DMM) mm 9.5 x 16
- Cutting Diameter Minimum (DCN) mm 10
- Cutting Diameter Maximum (dcx) 10.5
- Flange Diameter (DF) mm 20
- Functional Length Secondary (LFS) mm 53
- Overall Length (OL) mm 101
- Type SD103 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113894

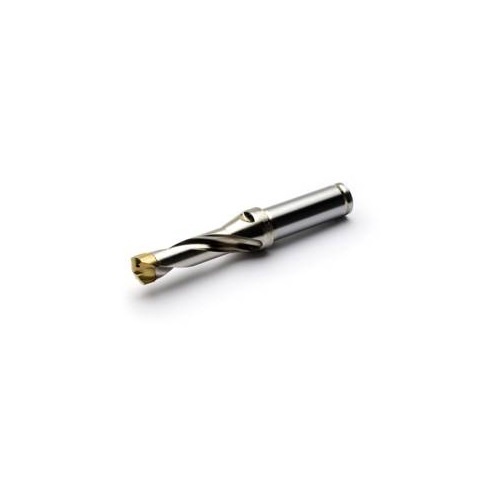

Seco SD103 Crownloc™ Exchangeable Tip Drill 9.5 x 16 x 101mm SD103-10.00/10.49-30-16R7
SD103 Crownloc™ Exchangeable Tip Drill
$404.22
SAVE $62.18 (13%)
