Specifications
- AIMS SKU A0113934
- Brand Seco
- Model Number 02445808
- Barcode Number 45808024000104
- Net Weight (kg) 0.126
- Designation SD105-12.00/12.49-65-16R7

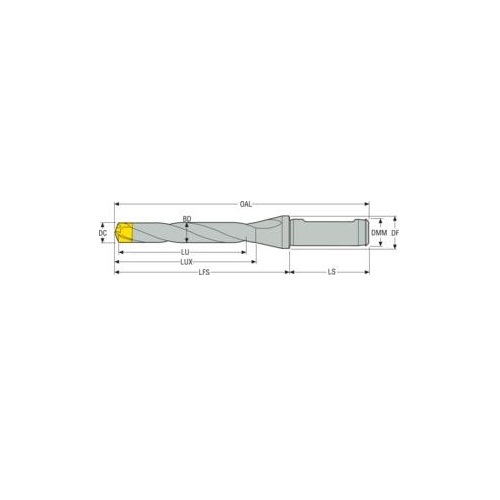

- Usable Length Maximum (LUX) mm 73
- Shank Length (LS) mm 48
- Usable Length (LU) mm 65
- Peripheral Effective Cutting Edge Count (ZEFP) 2
- Body Diameter (BD) X Shank Diameter (DMM) mm 11.5 x 16
- Cutting Diameter Minimum (DCN) mm 12
- Cutting Diameter Maximum (dcx) 12.5
- Flange Diameter (DF) mm 20
- Functional Length Secondary (LFS) mm 93
- Overall Length (OL) mm 141
- Type SD105 Exchangeable Tip Drill
- Shank Type ISO 9766
SKU: A0113934

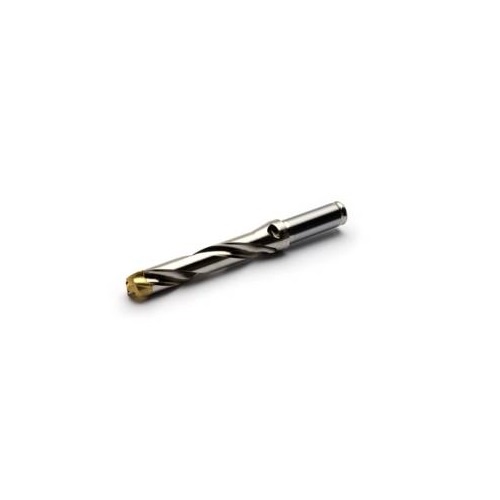

Seco SD105 Crownloc™ Exchangeable Tip Drill 11.5 x 16 x 141mm SD105-12.00/12.49-65-16R7
SD105 Crownloc™ Exchangeable Tip Drill
$514.80
SAVE $79.20 (13%)
