Description

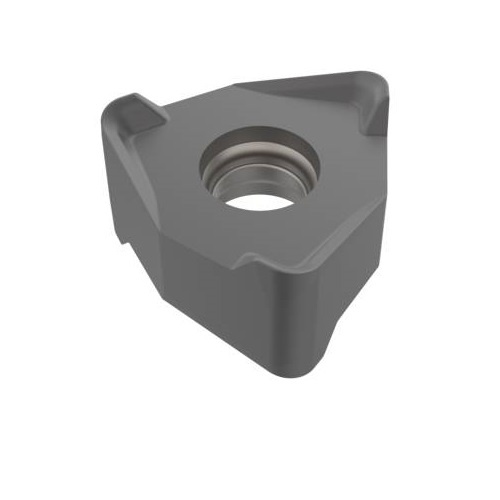

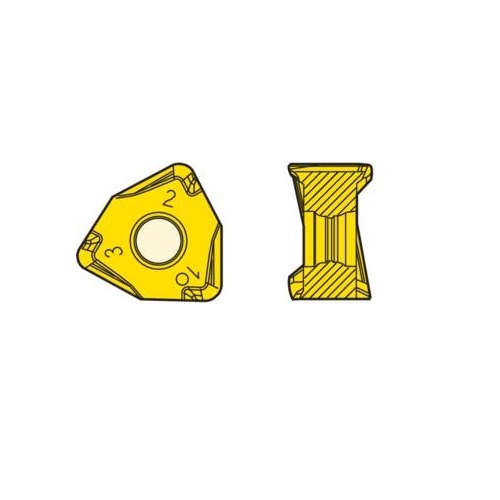

MK1500 Square Shoulder Milling Cutter Carbide Insert

  • Milling cutter insert for square 6 shoulder mill insert size 08.
  • MK1500 carbide CVD grade type.
  • 88.3 degrees insert included angle.
  • 12.48mm inscribed circle diameter.
  • 7.5mm theoretical cutting edge length and cutting edge effective length.
  • 6.45mm insert thickness.

All About MK1500 CVD Coated Grade:

  • CVD-coated grade based on Duratomic® coating.
  • Basic grade for milling cast iron and nodular cast iron, with or without coolant.
  • Ti (C, N) – Al2O3.

Specifications

  • AIMS SKU A0112946
  • Brand Seco
  • Model Number 02641986
  • Barcode Number 41986026001009
  • Designation XNEX080616TR-M13 MK1500

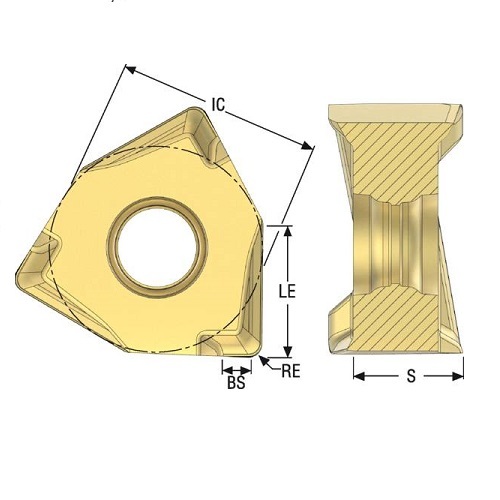

  • Wiper Edge Length (BS) X Corner Radius (RE) mm 0.5 x 1.6
  • Cutting Edge Count (CEDC) 6
  • Insert Included Angle (EPSR) 88.3 deg
  • Inscribed Circle Diameter (IC) 12.48
  • Insert Hand (IH) Right
  • Theoretical Cutting Edge Length (L) 7.5
  • Cutting Edge Effective Length (LE) mm 7.5
  • Insert Thickness (S) mm 6.45
  • Cutting Rake Deg 22°
  • Type Milling Cutter Insert
  • Grade Type Carbide CVD

Video

SKU: A0112946

Seco 0.5 x 1.6mm Square Shoulder Milling Cutter Insert XNEX080616TR-M13,MK1500 10 Pcs

MK1500 Square 6 Shoulder Milling Cutter Carbide Insert

$410.88
