Specifications
- AIMS SKU A0112959
- Brand Seco
- Model Number 02743976
- Barcode Number 43976027001007
- Designation XNEX080616TR-ME09 MM4500

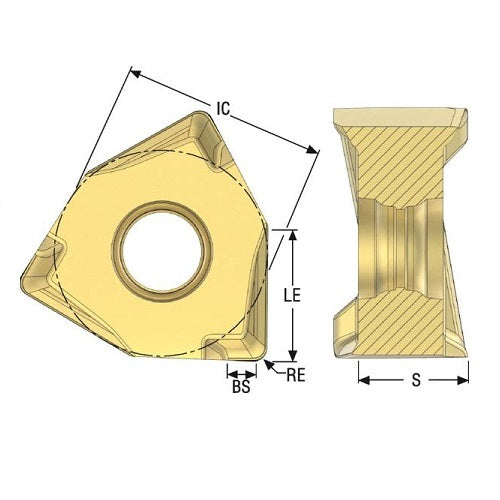

- Wiper Edge Length (BS) X Corner Radius (RE) mm 0.6 x 1.6
- Cutting Edge Count (CEDC) 6
- Insert Included Angle (EPSR) 88.3 deg
- Inscribed Circle Diameter (IC) 12.48
- Insert Hand (IH) Right
- Theoretical Cutting Edge Length (L) 7.5
- Cutting Edge Effective Length (LE) mm 7.5
- Insert Thickness (S) mm 6.45
- Cutting Rake Deg 27°
- Type Milling Cutter Insert
- Grade Type Carbide PVD
SKU: A0112959

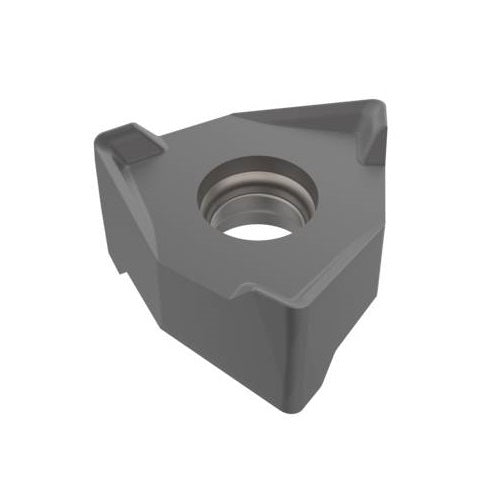

Seco 0.6 x 1.6mm Square Shoulder Milling Cutter Insert XNEX080616TR-ME09,MM4500 10 Pcs
MM4500 Square 6 Shoulder Milling Cutter Carbide Insert
$410.88
