Specifications
- AIMS SKU A0113032
- Brand Seco
- Model Number 74005305
- Barcode Number 5305740001009
- Net Weight (kg) 0.003

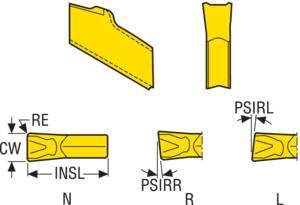

- Designation 150.10-4L6-12 T25M
- Cutting Width (mm) 4.1
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 6.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
- Corner Radius (RE) mm 0.23
- Insert Seat Size Code (SSC) 4
- Type Parting Off Insert
- Grade Type Carbide CVD
- Insert Hand (IH) Left
SKU: A0113032
Seco Parting Off Left Insert T25M 4.1mm 12 Chipbreaker 150.10-4L6-12,T25M - Pack of 10
Turning 150.10 Parting Off Left Insert
$268.84
