Specifications
- AIMS SKU A0113084
- Brand Seco
- Model Number 74016527
- Barcode Number 16527740001001
- Net Weight (kg) 0.002

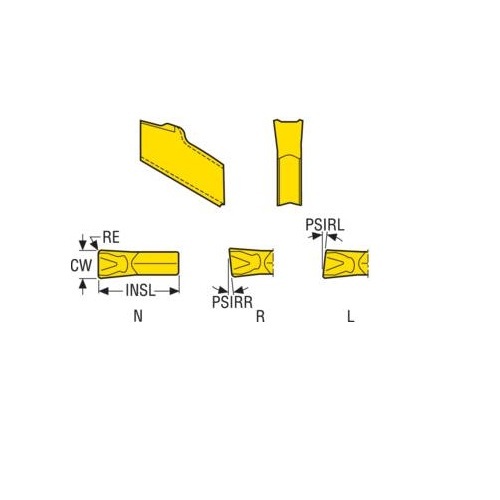

- Designation 150.10-3L6-16 T25M
- Cutting Width (mm) 3.1
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 6.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
- Corner Radius (RE) mm 0.19
- Insert Seat Size Code (SSC) 3
- Type Parting Off Insert
- Grade Type Carbide CVD
- Insert Hand (IH) Left
SKU: A0113084

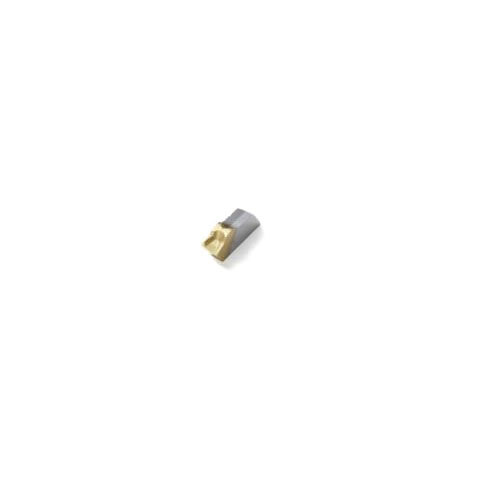

Seco Parting Off Left Insert T25M 3.1mm 16 Chipbreaker 150.10-3L6-16,T25M - Pack of 10
Turning 150.10 Parting Off Left Insert
$254.54
