Specifications
- AIMS SKU A0113047
- Brand Seco
- Model Number 74005319
- Barcode Number 5319740001006
- Net Weight (kg) 0.003

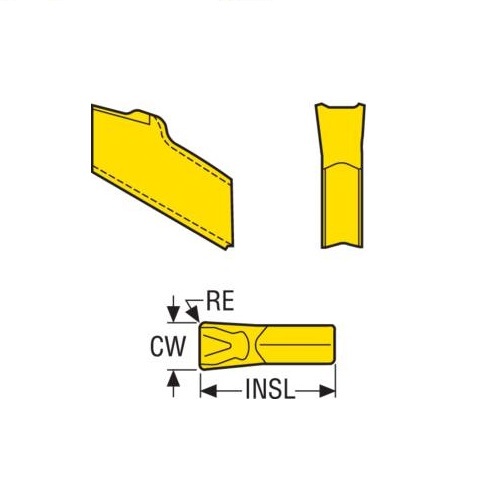

- Designation 150.10-5N-14 T25M
- Cutting Width (mm) 5.1
- Insert Length (INSL) mm 9
- Cutting Edge Angle Major Left Hand (PSIRL) 0.0 deg
- Cutting Edge Angle Major Right Hand (PSIRR) 0.0 deg
- Corner Radius (RE) mm 0.26
- Insert Seat Size Code (SSC) 5
- Type Parting Off Insert
- Grade Type Carbide CVD
- Insert Hand (IH) Neutral
SKU: A0113047

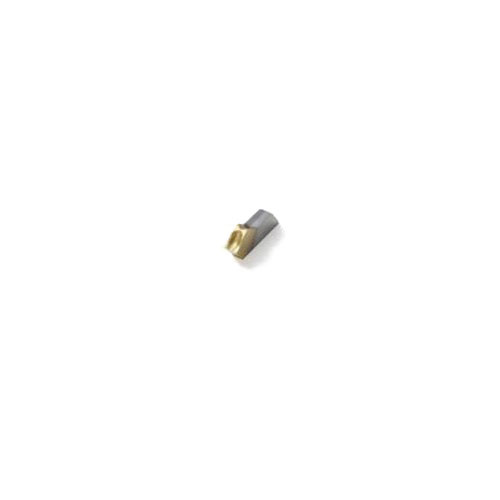

Seco Parting Off Neutral Insert T25M 5.1mm 14 Chipbreaker 150.10-5N-14,T25M - Pack of 10
Turning 150.10 Parting Off Neutral Insert
$283.14
