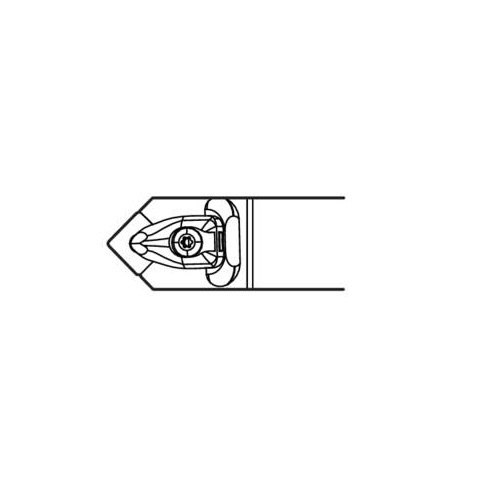

Specifications

AIMS SKU A0114959
Brand Seco
Model Number 02904197
Barcode Number 4197029000107
Net Weight (kg) 0.315
Designation DSDNN-12-4B

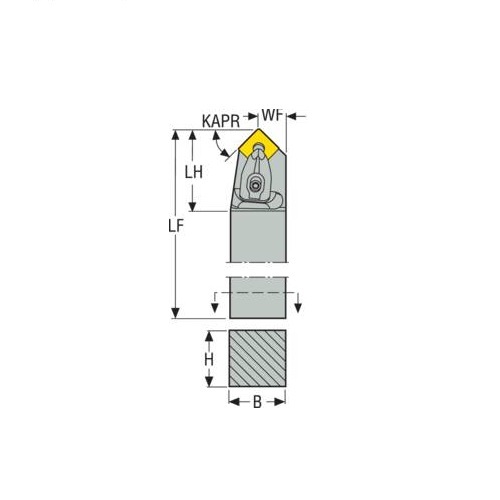

Functional Length (LF) 114.3mm
Insert Shape Code (SC) S
Head Length (LH) 32mm
Cutting Diameter Internal Minimum 3 (mm) 100
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 45.0 deg
Functional Width (WF) mm 9.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) N
Cutting Diameter Internal Minimum (DCINN) 100
Tool Type D Type
Insert Seat Size Code (SSC) 1204
Shank Length (LS) mm 82.3
Height Of Tool Holder Shank (H) mm 19.1
Tool Cutting Edge Angle (KAPR) 45.0 deg
Connection Text Workpiece Side (ctws) SN1204
Shank Width (b) mm 19.1
Direction Of Cutting (hand) Neutral
Connection Text Machine Side (CTMS) 19.05
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg

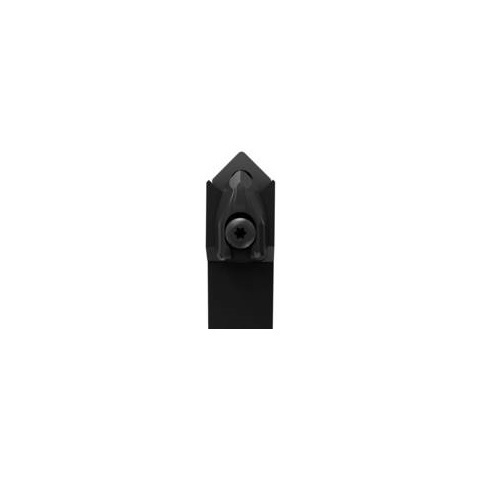

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Top Clamp
