Seco Top Clamp Left - B Type - S Insert Shape - M Surface - SECO

Description

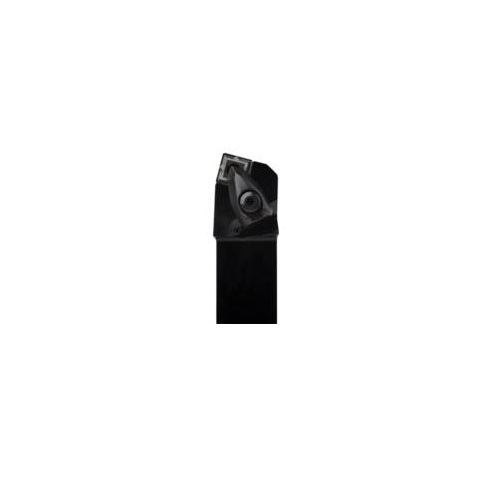

Seco Turning External Toolholder Top Clamp Left 75° S Insert Shape DSBNL2020K12-M

Turning External Toolholder (Top Clamp - B Type - S Insert Shape - M Surface)

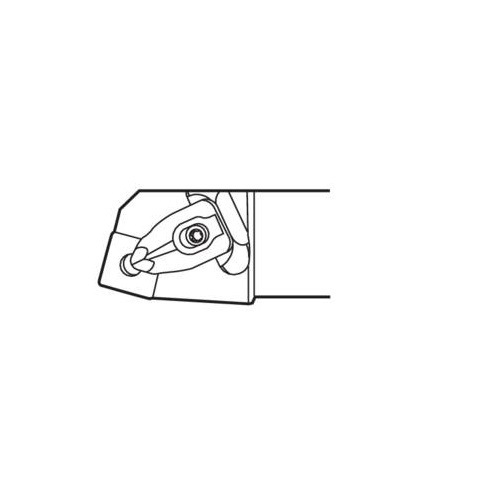

Top clamp using the center hole.
S insert shape.
B tool type, straight shank with 15° side cutting edge angle.
M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114949

Brand Seco

Model Number 02588159

Barcode Number 88159025000101

Net Weight (kg) 0.406

Designation DSBNL2020K12-M

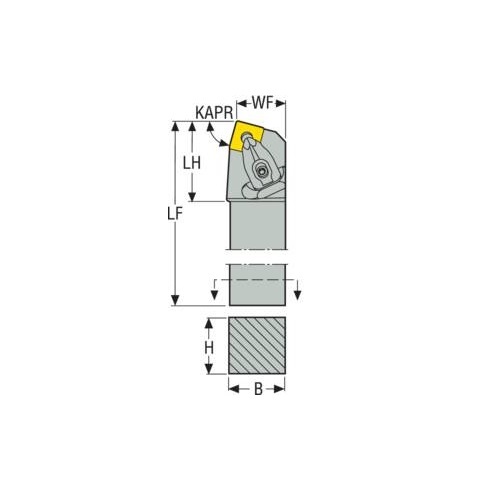

Functional Length (LF) 125mm

Insert Shape Code (SC) S

Head Length (LH) 37mm

Functional Width (WF) mm 17

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) B

Tool Type B Type

Height Of Tool Holder Shank (H) mm 20

Tool Cutting Edge Angle (KAPR) 75.0 deg

Connection Text Workpiece Side (ctws) SN1204

Shank Width (b) mm 20

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2020

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
