Specifications

AIMS SKU A0115001
Brand Seco
Model Number 02565880
Barcode Number 65880025000103
Net Weight (kg) 0.791
Designation DTFNL-16-4D

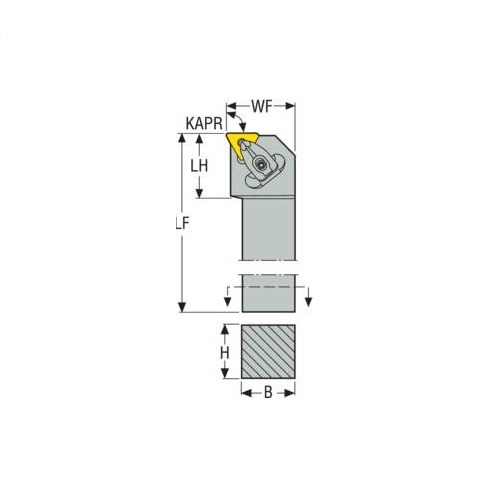

Functional Length (LF) 152.4mm
Insert Shape Code (SC) T
Insert Size Inscribed Circle Diameter (mm) 4
Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) F
Tool Type F Type
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 90.0 deg
Functional Height (HF) mm 25.4
Connection Text Workpiece Side (ctws) TN2204
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25.4
Rake Angle Orthogonal (gamo) -6.0 deg

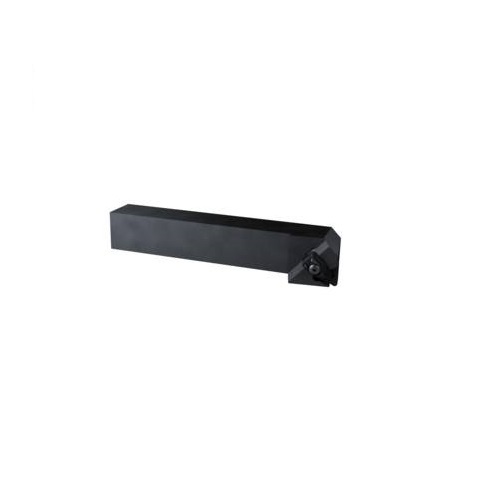

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

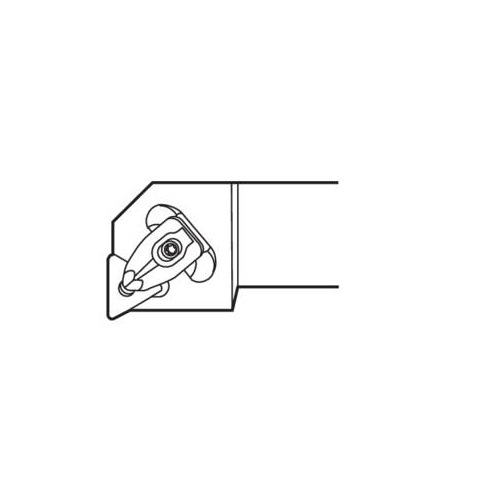

• Insert Clamping System (ICS) Top Clamp
