Seco Top Clamp Left - G Type - T Insert Shape - M Surface - SECO

Description

Seco Turning External Toolholder Top Clamp Left 90° T Insert Shape DTGNL2020K16-M

Turning External Toolholder (Top Clamp - G Type - T Insert Shape - M Surface)

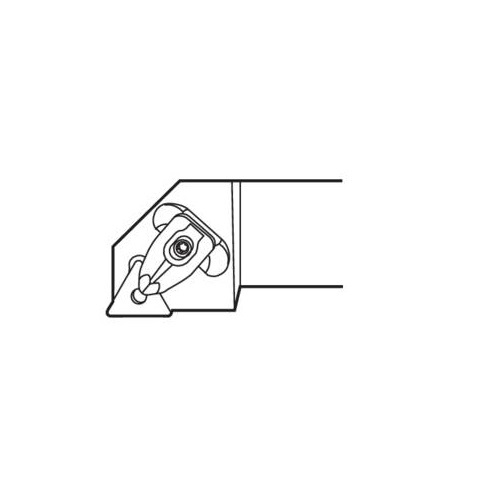

Top clamp using the center hole.
T insert shape.
G tool type, offset shank with 0° side cutting edge angle.
M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115020

Brand Seco

Model Number 02588202

Barcode Number 88202025000104

Net Weight (kg) 0.403

Designation DTGNL2020K16-M

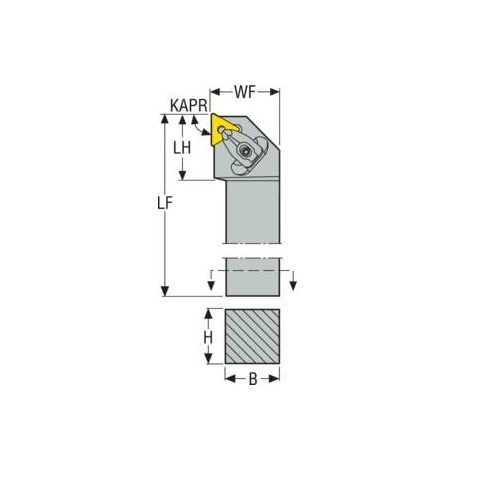

Functional Length (LF) 125mm

Insert Shape Code (SC) T

Head Length (LH) 29mm

Functional Width (WF) mm 25

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) G

Tool Type G Type

Height Of Tool Holder Shank (H) mm 20

Tool Cutting Edge Angle (KAPR) 90.0 deg

Connection Text Workpiece Side (ctws) TN1604

Shank Width (b) mm 20

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2020

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
