Specifications
- AIMS SKU A0114916
- Brand Seco
- Model Number 02565492
- Barcode Number 65492025000108
- Net Weight (kg) 0.24
- Designation DDJNL-10-3A
- Functional Length (LF) 101.6mm
- Insert Shape Code (SC) D
- Insert Size Inscribed Circle Diameter (mm) 3
- Ramping Angle Maximum (RPMX) 30.0 deg
- Functional Width (WF) mm 22.2
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) -6.0 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Shank Length (LS) mm 71.6
- Height Of Tool Holder Shank (H) mm 15.9
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Connection Text Workpiece Side (ctws) DN1104
- Shank Width (b) mm 15.9
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 15.88
- Rake Angle Axial (gamp) -6.0 deg
- Rake Angle Orthogonal (gamo) -6.0 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External
- Insert Clamping System (ICS) Top Clamp
SKU: A0114916

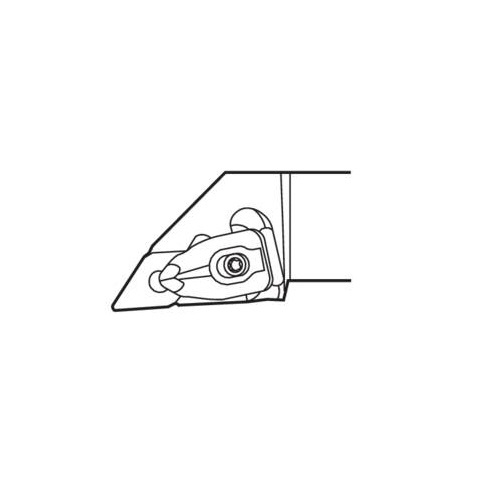

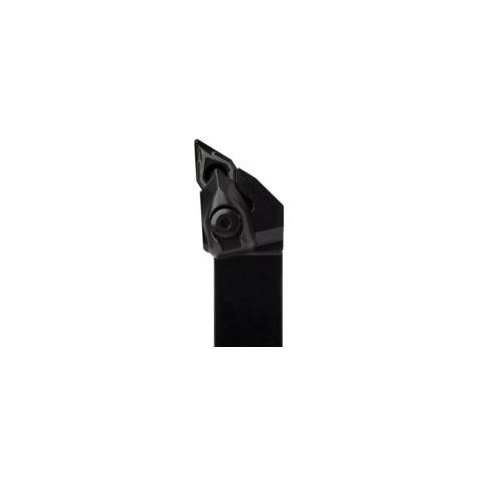

Seco Turning External Toolholder Top Clamp 101.6 x 22.2 x 3mm Left 93° D Insert Shape DDJNL-10-3A
Top Clamp - J Type - D Insert Shape
$134.64
SAVE $33.66 (20%)
