Specifications
- AIMS SKU A0115036
- Brand Seco
- Model Number 02822862
- Barcode Number 22862028000101
- Net Weight (kg) 0.34
- Designation DVJNL-12-3B

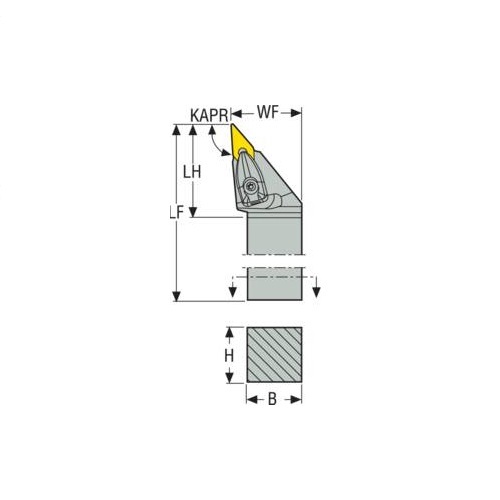

- Functional Length (LF) 114.3mm
- Insert Shape Code (SC) V
- Insert Size Inscribed Circle Diameter (mm) 3
- Functional Width (WF) mm 25.4
- Cutting Edge Length (mm) 3
- Inclination Angle (LAMS) -13.5 deg
- Tool Cutting Edge Angle Code (KAPRC) J
- Tool Type J Type
- Height Of Tool Holder Shank (H) mm 19.1
- Tool Cutting Edge Angle (KAPR) 93.0 deg
- Functional Height (HF) mm 19.1
- Connection Text Workpiece Side (ctws) VN1604
- Shank Width (b) mm 19.1
- Direction Of Cutting (hand) Left
- Connection Text Machine Side (CTMS) 19.05
- Rake Angle Orthogonal (gamo) -4.5 deg
- Type Turning Toolholder
- Shank Type Square shank
- Version (internal/external/both) External

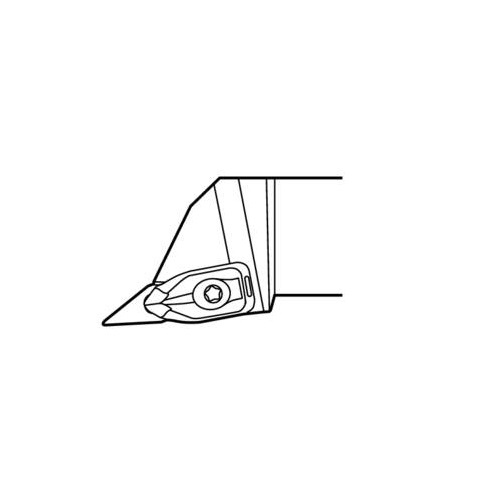

- Insert Clamping System (ICS) Top Clamp
SKU: A0115036

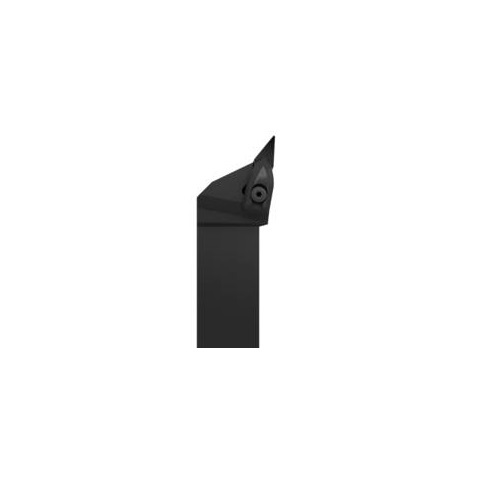

Seco Turning External Toolholder Top Clamp 114.3 x 25.4 x 3mm Left 93° V Insert Shape DVJNL-12-3B
Top Clamp - J Type - V Insert Shape
$181.28
SAVE $45.32 (20%)
