Description

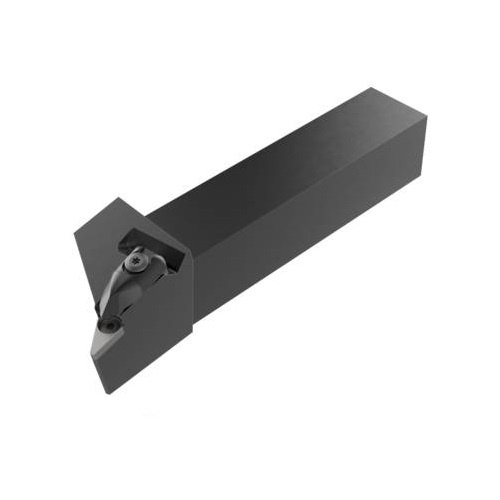

Seco Turning External Toolholder Top Clamp Left 93° V Insert Shape DVJNL1616H13

Turning External Toolholder (Top Clamp - J Type - V Insert Shape - 13mm Cutting Edge Length)

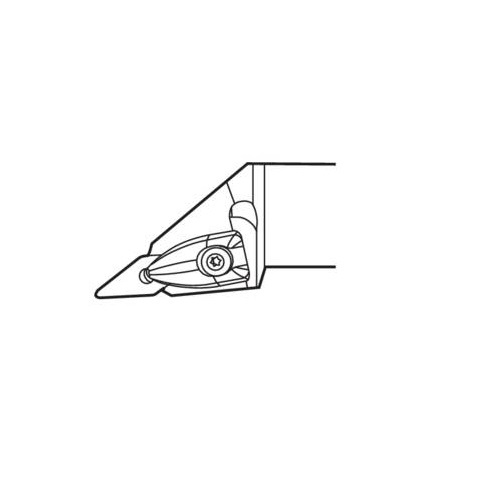

  • Top clamp using the center hole.
  • V insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.
  • 16mm cutting edge length.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0115042
  • Brand Seco
  • Model Number 02588229
  • Barcode Number 88229025000101
  • Net Weight (kg) 0.2
  • Designation DVJNL1616H13

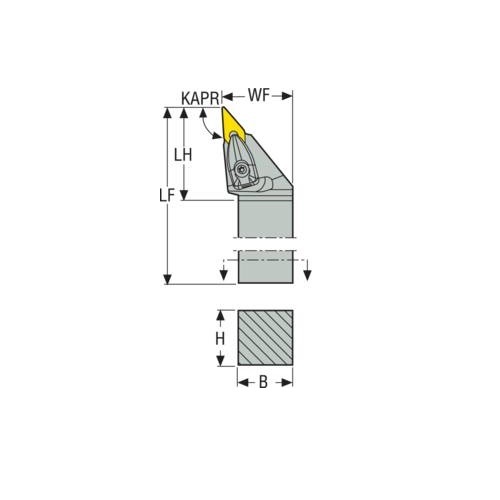

  • Functional Length (LF) 100mm
  • Insert Shape Code (SC) V
  • Head Length (LH) 42mm
  • Functional Width (WF) mm 20.2
  • Cutting Edge Length (mm) 13
  • Inclination Angle (LAMS) -13.5 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 16
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) VN1304
  • Shank Width (b) mm 16
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 1616
  • Rake Angle Orthogonal (gamo) -4.5 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0115042

Seco Turning External Toolholder Top Clamp 100 x 42 x 13mm Left 93° V Insert Shape DVJNL1616H13

Top Clamp - J Type - V Insert Shape - 13mm Cutting Edge

$165.44
RRP $206.80
SAVE $41.36 (20%)
