Specifications

AIMS SKU A0114836
Brand Seco
Model Number 02565479
Barcode Number 65479025000109
Net Weight (kg) 0.82
Designation DCKNL-16-4D
Insert Seat Size Code (SSC) 1204
Insert Shape Code (SC) C
Cutting Diameter Internal Minimum 3 (mm) 350
Insert Size Inscribed Circle Diameter (mm) 4

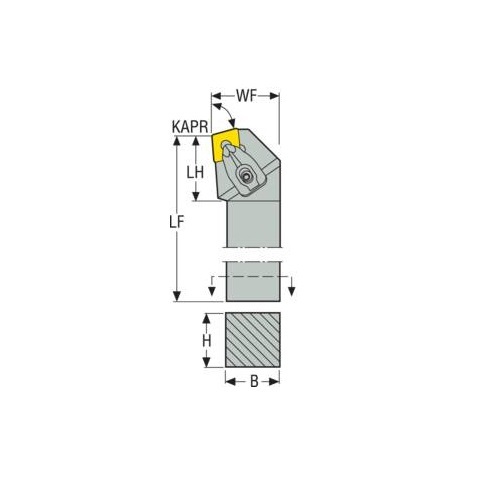

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) K
Cutting Diameter Internal Minimum (DCINN) 250mm
Tool Type K Type
Functional Length (LF) 152.4mm
Shank Length (LS) mm 119.3
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 75.0 deg
Cutting Depth Maximum (cdx) mm 1
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg

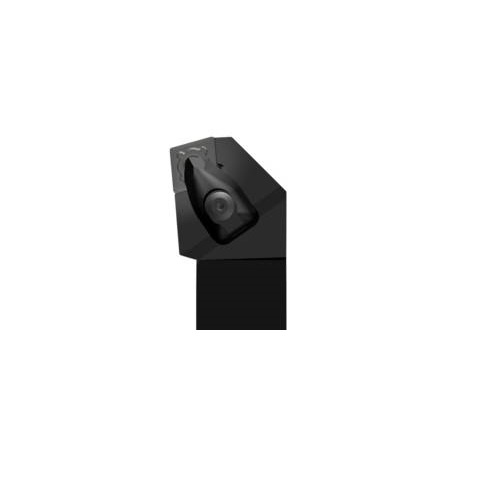

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

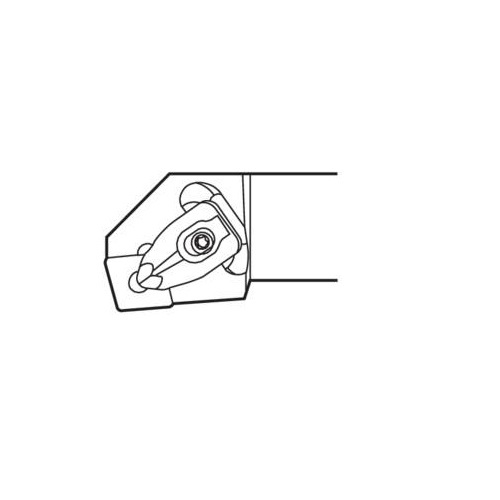

• Insert Clamping System (ICS) Top Clamp
