Specifications

AIMS SKU A0114965
Brand Seco
Model Number 02565537
Barcode Number 65537025000106
Net Weight (kg) 0.38
Designation DSKNL-12-4B

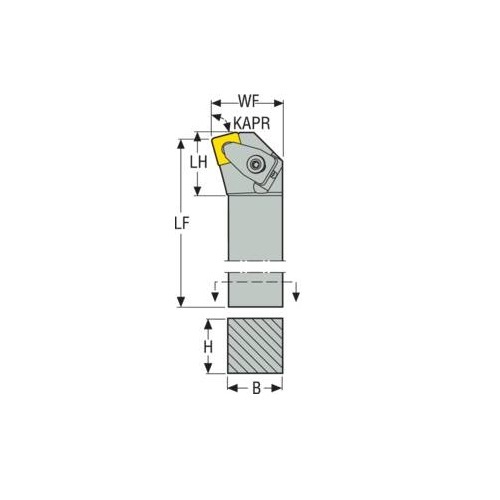

Functional Length (LF) 114.3mm
Insert Shape Code (SC) S
Insert Size Inscribed Circle Diameter (mm) 4
Ramping Angle Maximum (RPMX) 0.0 deg
Functional Width (WF) mm 25.4
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) K
Tool Type K Type
Shank Length (LS) mm 78.3
Height Of Tool Holder Shank (H) mm 19.1
Tool Cutting Edge Angle (KAPR) 75.0 deg
Connection Text Workpiece Side (ctws) SN1204
Shank Width (b) mm 19.1
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 19.05
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg

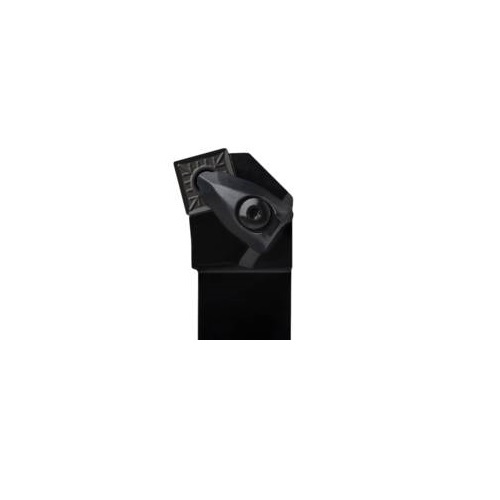

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

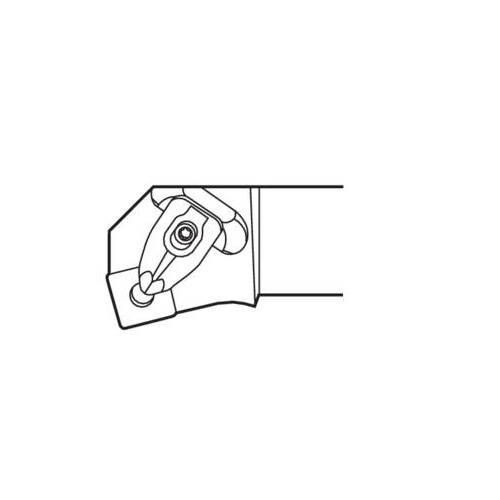

• Insert Clamping System (ICS) Top Clamp
