Specifications

AIMS SKU A0114939
Brand Seco
Model Number 02880408
Barcode Number 80408028000105
Net Weight (kg) 0.74
Designation DDQNL-16-3D
Insert Seat Size Code (SSC) 1506
Insert Shape Code (SC) D
Insert Size Inscribed Circle Diameter (mm) 3
Ramping Angle Maximum (RPMX) 17.0 deg

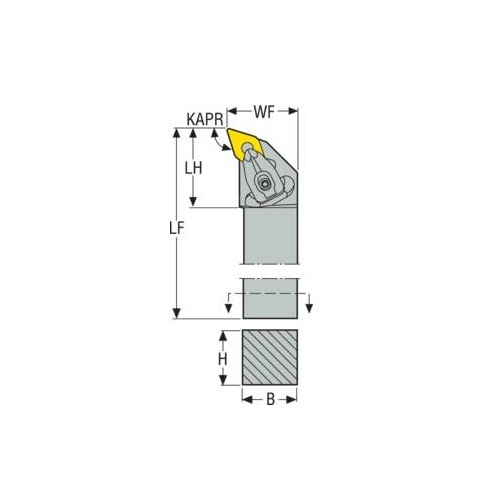

Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) H
Tool Type Q Type
Functional Length (LF) 152.4mm
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 107.5 deg
Functional Height (HF) mm 25.4
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Left
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg

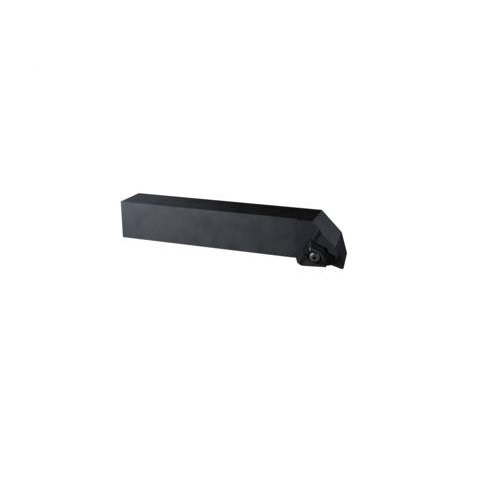

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

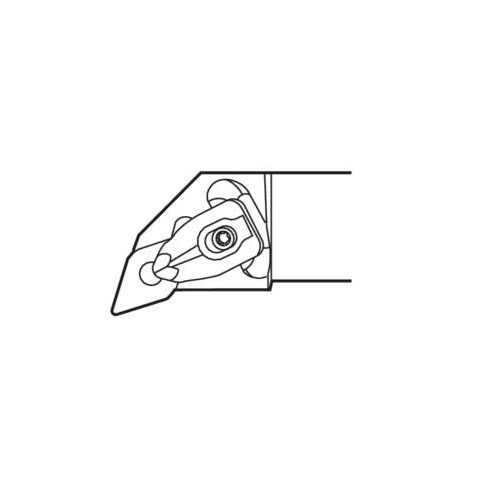

• Insert Clamping System (ICS) Top Clamp
