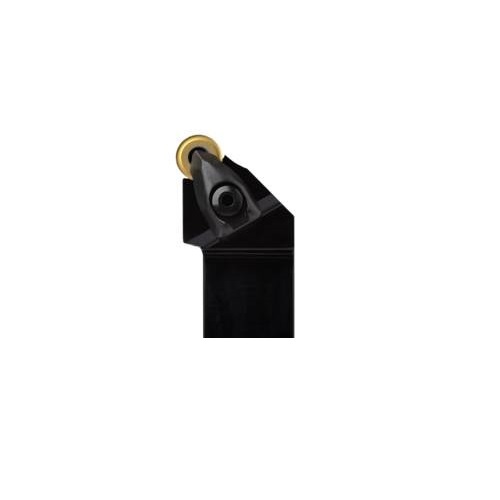

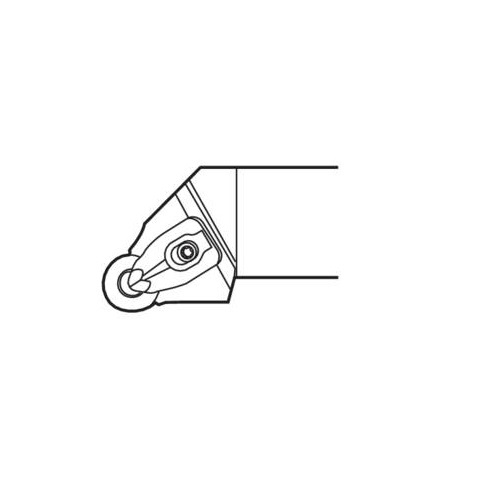

Seco Turning External Toolholder Top Clamp Left 45° R Insert Shape DRSNL2525M12-M

Turning External Toolholder (Top Clamp - S Type - R Insert Shape - M Surface - 12mm Cutting Edge Length)

  • Top clamp using the center hole.
  • R insert shape.
  • S tool type, offset shank with 45° side cutting edge angle.
  • 12mm cutting edge length.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114945
  • Brand Seco
  • Model Number 02588155
  • Barcode Number 88155025000103
  • Net Weight (kg) 0.717
  • Designation DRSNL2525M12-M

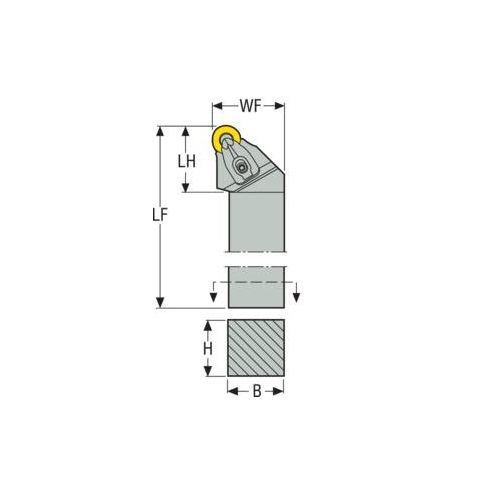

  • Functional Length (LF) 150mm
  • Insert Shape Code (SC) R
  • Head Length (LH) 30mm
  • Functional Width (WF) mm 32
  • Cutting Edge Length (mm) 12
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) S
  • Tool Type S Type
  • Height Of Tool Holder Shank (H) mm 25
  • Tool Cutting Edge Angle (KAPR) 45.0 deg
  • Connection Text Workpiece Side (ctws) RN1204
  • Shank Width (b) mm 25
  • Direction Of Cutting (hand) Left
  • Connection Text Machine Side (CTMS) 2525
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0114945

Seco Turning External Toolholder Top Clamp 150 x 30 x 12mm Left 45° R Insert Shape DRSNL2525M12-M

Top Clamp - S Type - R Insert Shape

$158.40
RRP $198.00
SAVE $39.60 (20%)
