Seco Top Clamp Left - S Type - S Insert Shape - M Surface - SECO

Description

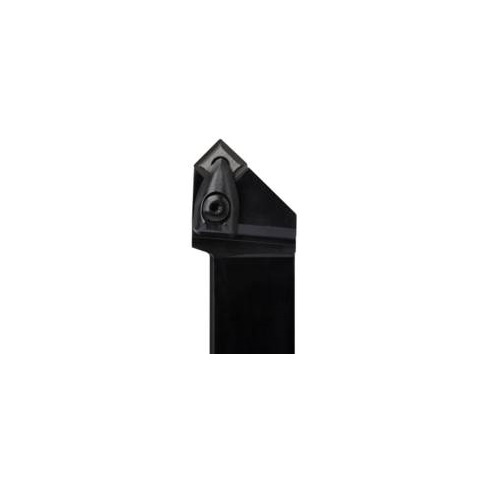

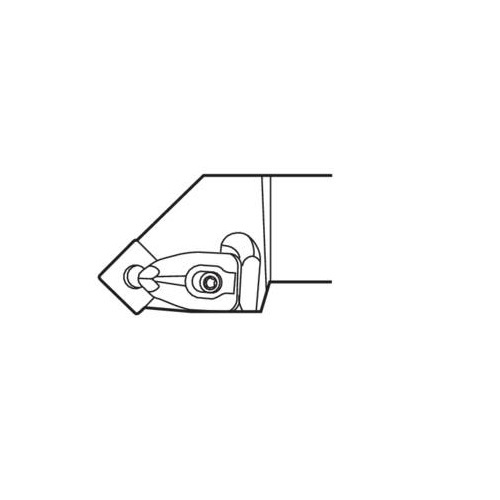

Seco Turning External Toolholder Top Clamp Left 45° S Insert Shape DSSNL1616H09-M

Turning External Toolholder (Top Clamp - S Type - S Insert Shape - M Surface)

Top clamp using the center hole.
S insert shape.
S tool type, offset shank with 45° side cutting edge angle.
M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

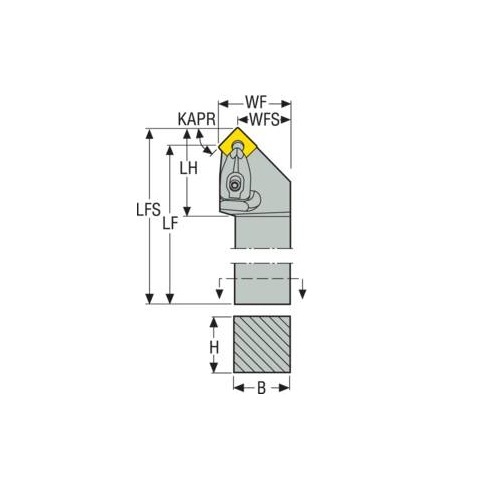

Specifications

AIMS SKU A0114979

Brand Seco

Model Number 02588170

Barcode Number 88170025000106

Net Weight (kg) 0.216

Designation DSSNL1616H09-M

Functional Length (LF) 101mm

Insert Shape Code (SC) S

Head Length (LH) 32mm

Functional Width (WF) mm 20

Cutting Edge Length (mm) 9

Inclination Angle (LAMS) 0.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Height Of Tool Holder Shank (H) mm 16

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) SN0903

Shank Width (b) mm 16

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 1616

Rake Angle Orthogonal (gamo) -8.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
