Specifications

AIMS SKU A0114936
Brand Seco
Model Number 02565509
Barcode Number 65509025000103
Net Weight (kg) 0.76
Designation DDPNN-16-3D

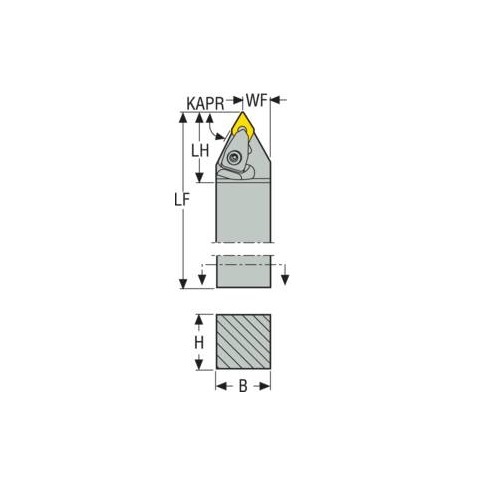

Shank Length (LS) mm 124.4
Insert Shape Code (SC) D
Insert Size Inscribed Circle Diameter (mm) 3
Functional Width (WF) mm 12.7
Cutting Edge Length (mm) 3
Inclination Angle (LAMS) -10.0 deg
Tool Cutting Edge Angle Code (KAPRC) P
Tool Type P Type
Functional Length (LF) 152.4mm
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 62.5 deg
Connection Text Workpiece Side (ctws) DN1104
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Neutral
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -10.0 deg
Rake Angle Orthogonal (gamo) 0.0 deg

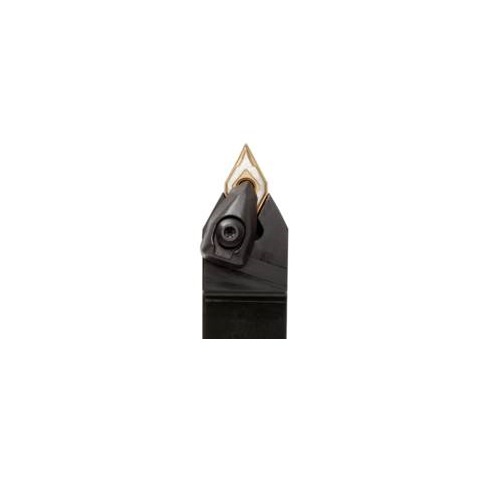

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Top Clamp
