Description

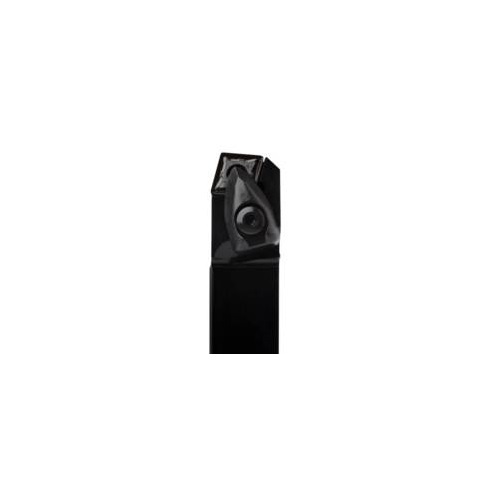

Seco Turning External Toolholder Top Clamp Right 75° C Insert Shape DCBNR2020K12-M

Turning External Toolholder (Top Clamp - B Type - C Insert Shape - M Surface)

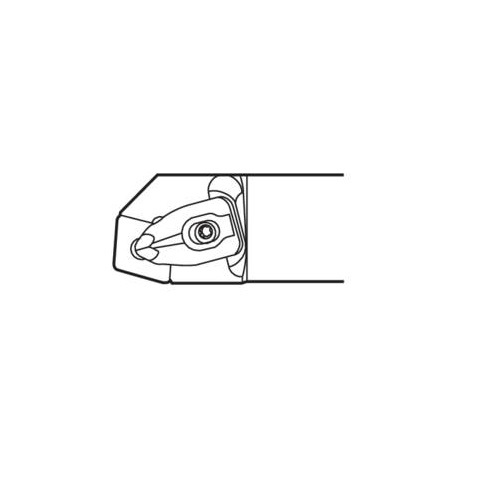

  • Top clamp using the center hole.
  • C insert shape.
  • B tool type, straight shank with 15° side cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

  • AIMS SKU A0114829
  • Brand Seco
  • Model Number 02588094
  • Barcode Number 88094025000105
  • Net Weight (kg) 0.387
  • Designation DCBNR2020K12-M

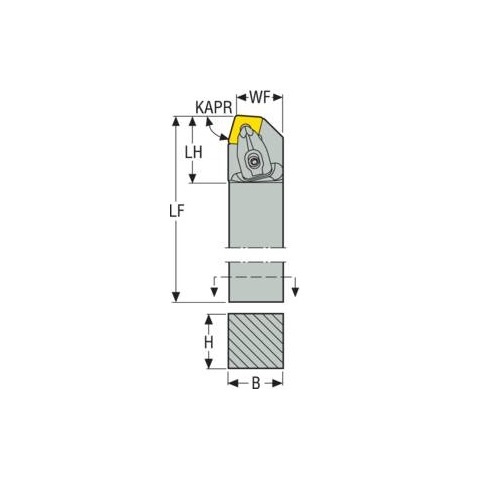

  • Functional Length (LF) 125mm
  • Insert Shape Code (SC) C
  • Head Length (LH) 32mm
  • Functional Width (WF) mm 17
  • Cutting Edge Length (mm) 12
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) B
  • Tool Type B Type
  • Height Of Tool Holder Shank (H) mm 20
  • Tool Cutting Edge Angle (KAPR) 75.0 deg
  • Connection Text Workpiece Side (ctws) CN1204
  • Shank Width (b) mm 20
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2020
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0114829

Seco Turning External Toolholder Top Clamp 125 x 20 x 12mm Right 75° C Insert Shape DCBNR2020K12-M

Top Clamp - B Type - C Insert Shape - M Surface

$151.36
RRP $189.20
SAVE $37.84 (20%)
