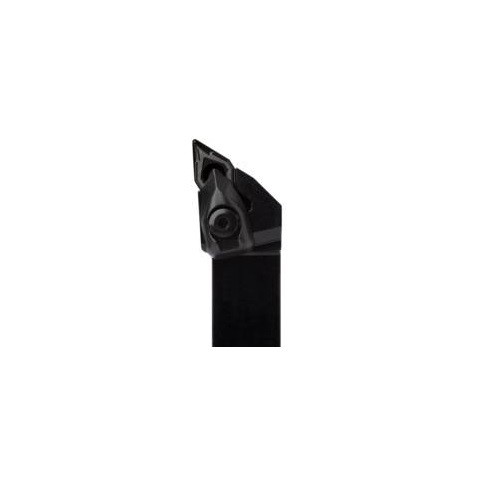

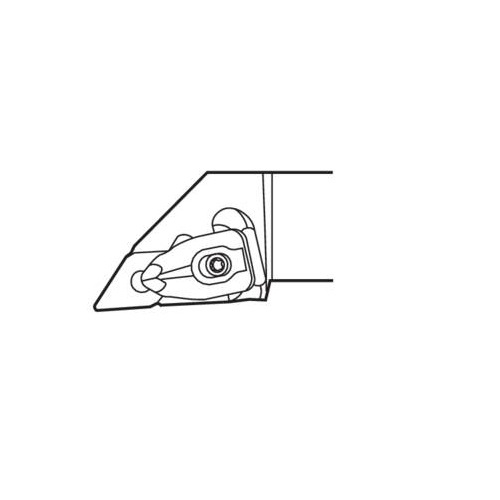

Seco Turning External Toolholder Top Clamp Right 93° D Insert Shape DDJNR-16-4D-M

Turning External Toolholder (Top Clamp - J Type - D Insert Shape - M Surface)

  • Top clamp using the center hole.
  • D insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.
  • M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

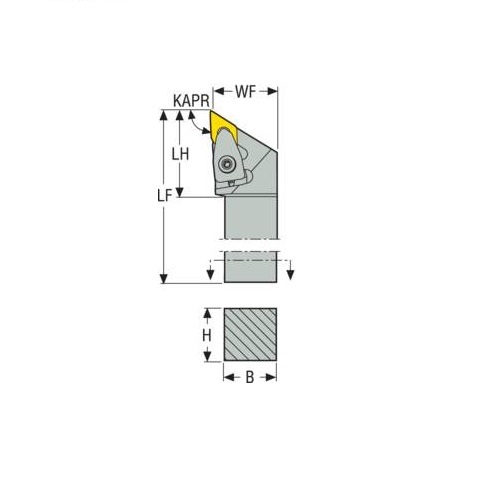

Specifications

  • AIMS SKU A0114907
  • Brand Seco
  • Model Number 02569288
  • Barcode Number 69288025000103
  • Net Weight (kg) 0.74
  • Designation DDJNR-16-4D-M
  • Functional Length (LF) 152.4mm
  • Insert Shape Code (SC) D
  • Insert Size Inscribed Circle Diameter (mm) 4
  • Ramping Angle Maximum (RPMX) 30.0 deg
  • Functional Width (WF) mm 31.8
  • Cutting Edge Length (mm) 4
  • Inclination Angle (LAMS) -6.0 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Shank Length (LS) mm 110.4
  • Height Of Tool Holder Shank (H) mm 25.4
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) DN1504
  • Shank Width (b) mm 25.4
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 25.4
  • Rake Angle Axial (gamp) -6.0 deg
  • Rake Angle Orthogonal (gamo) -6.0 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0114907

Seco Turning External Toolholder Top Clamp 152.4 x 31.8 x 4mm Right 93° D Insert Shape DDJNR-16-4D-M

Top Clamp - J Type - D Insert Shape - M Surface

$158.40
RRP $198.00
SAVE $39.60 (20%)
