Description

Seco Turning External Toolholder Top Clamp Right 93° V Insert Shape DVJNR2020K16

Turning External Toolholder (Top Clamp - J Type - V Insert Shape - 16mm Cutting Edge Length)

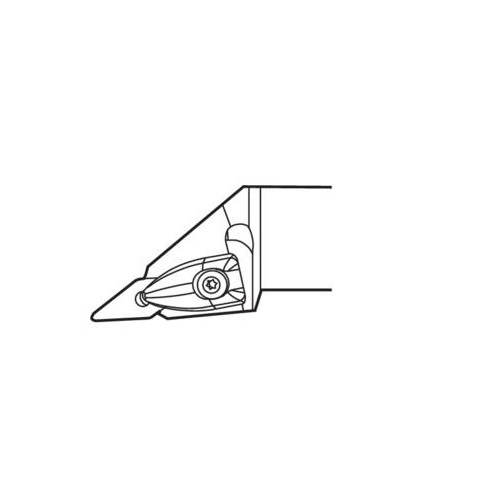

  • Top clamp using the center hole.
  • V insert shape.
  • J tool type, offset shank with –3° side cutting edge angle.
  • 16mm cutting edge length.

About Shank Toolholders and Boring Bars:

  • Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
  • Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
  • This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
  • The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods

Specifications

  • AIMS SKU A0115051
  • Brand Seco
  • Model Number 02588232
  • Barcode Number 88232025000101
  • Net Weight (kg) 0.392

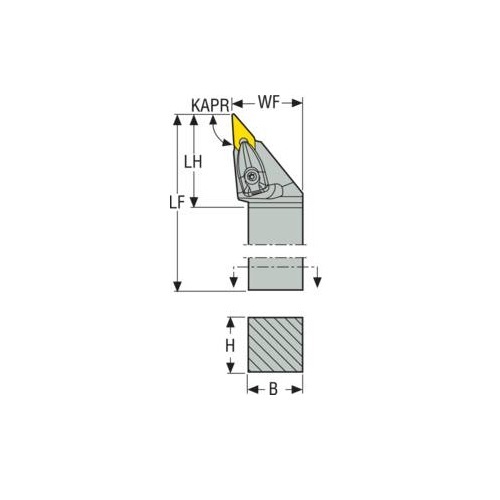

  • Designation DVJNR2020K16
  • Functional Length (LF) 125mm
  • Insert Shape Code (SC) V
  • Head Length (LH) 41mm
  • Functional Width (WF) mm 25
  • Cutting Edge Length (mm) 16
  • Inclination Angle (LAMS) -13.5 deg
  • Tool Cutting Edge Angle Code (KAPRC) J
  • Tool Type J Type
  • Height Of Tool Holder Shank (H) mm 20
  • Tool Cutting Edge Angle (KAPR) 93.0 deg
  • Connection Text Workpiece Side (ctws) VN1604
  • Shank Width (b) mm 20
  • Direction Of Cutting (hand) Right
  • Connection Text Machine Side (CTMS) 2020
  • Rake Angle Orthogonal (gamo) -4.5 deg
  • Type Turning Toolholder
  • Shank Type Square shank
  • Version (internal/external/both) External
  • Insert Clamping System (ICS) Top Clamp

Video

SKU: A0115051

Seco Turning External Toolholder Top Clamp 125 x 41 x 16mm Right 93° V Insert Shape DVJNR2020K16

Top Clamp - J Type - V Insert Shape - 16mm Cutting Edge

$181.28
RRP $226.60
SAVE $45.32 (20%)
