Specifications

AIMS SKU A0114839
Brand Seco
Model Number 02565475
Barcode Number 65475025000101
Net Weight (kg) 0.8
Designation DCKNR-16-4D

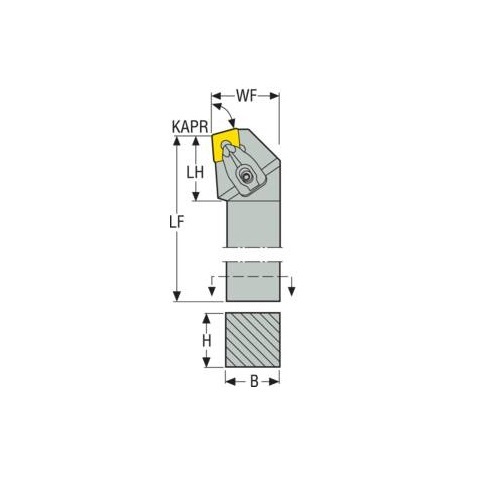

Shank Length (LS) mm 148.3
Insert Shape Code (SC) C
Cutting Diameter Internal Minimum 3 (mm) 350
Insert Size Inscribed Circle Diameter (mm) 4
Functional Width (WF) mm 31.8
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) K
Cutting Diameter Internal Minimum (DCINN) 250mm
Tool Type K Type
Functional Length (LF) 152.4mm
Insert Seat Size Code (SSC) 1204
Height Of Tool Holder Shank (H) mm 25.4
Tool Cutting Edge Angle (KAPR) 75.0 deg
Functional Height (HF) mm 25.4
Cutting Depth Maximum (cdx) mm 1
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 25.4
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 25.4
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg

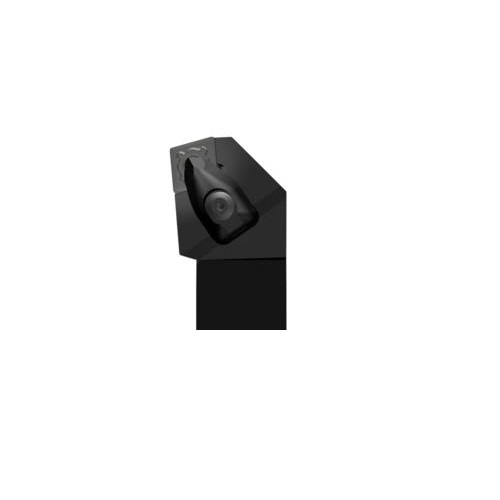

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

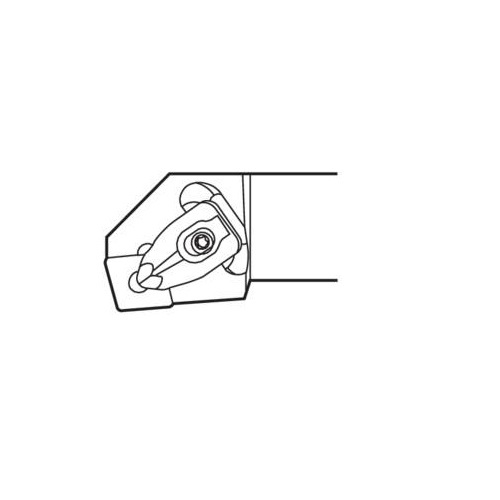

• Insert Clamping System (ICS) Top Clamp
