Specifications

AIMS SKU A0114848
Brand Seco
Model Number 02588110
Barcode Number 88110025000102
Net Weight (kg) 0.415
Designation DCKNR2020K12-M

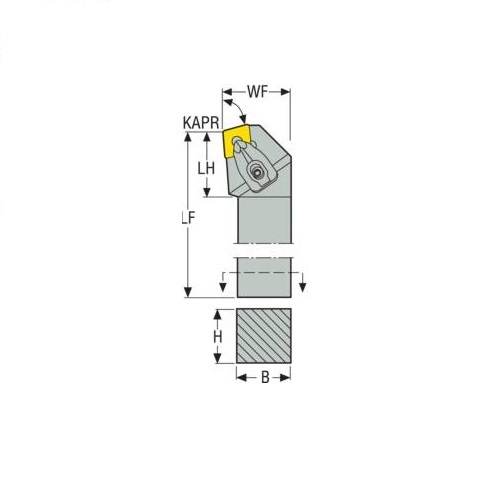

Shank Length (LS) mm 95
Insert Shape Code (SC) C
Head Length (LH) 30mm
Cutting Diameter Internal Minimum 3 (mm) 350
Functional Width (WF) mm 25
Cutting Edge Length (mm) 12
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) K
Cutting Diameter Internal Minimum (DCINN) 250mm
Tool Type K Type
Functional Length (LF) 125mm
Insert Seat Size Code (SSC) 1204
Height Of Tool Holder Shank (H) mm 20
Tool Cutting Edge Angle (KAPR) 75.0 deg
Functional Height (HF) mm 20
Cutting Depth Maximum (cdx) mm 1
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 20
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 2020
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg
Rake Angle Radial (gamf) -6.0 deg
• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External

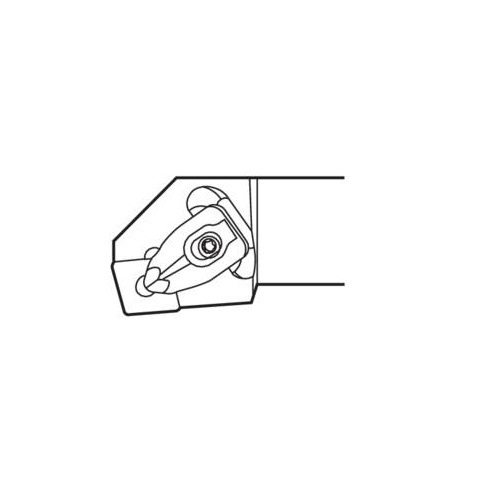

• Insert Clamping System (ICS) Top Clamp
