Specifications

AIMS SKU A0114855
Brand Seco
Model Number 02564754
Barcode Number 64754025000108
Net Weight (kg) 0.36
Designation DCLNR-12-4B

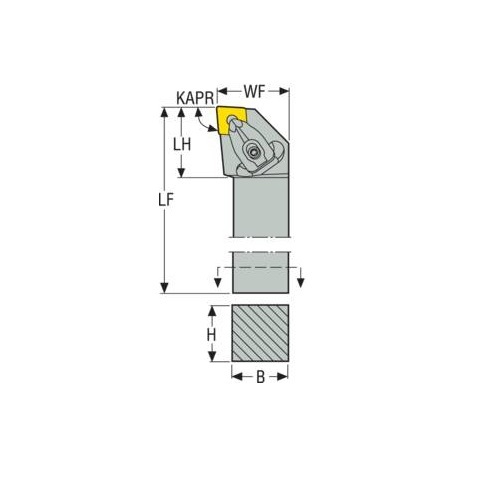

Shank Length (LS) mm 81.3
Insert Shape Code (SC) C
Insert Size Inscribed Circle Diameter (mm) 4
Functional Width (WF) mm 25.4
Cutting Edge Length (mm) 4
Inclination Angle (LAMS) -6.0 deg
Tool Cutting Edge Angle Code (KAPRC) L
Tool Type L Type
Functional Length (LF) 114.3mm
Height Of Tool Holder Shank (H) mm 19.1
Tool Cutting Edge Angle (KAPR) 95.0 deg
Connection Text Workpiece Side (ctws) CN1204
Shank Width (b) mm 19.1
Direction Of Cutting (hand) Right
Connection Text Machine Side (CTMS) 19.05
Rake Angle Axial (gamp) -6.0 deg
Rake Angle Orthogonal (gamo) -6.0 deg

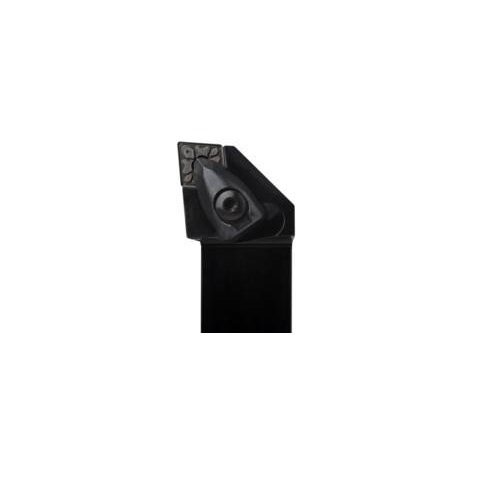

• Type Turning Toolholder
• Shank Type Square shank
• Version (internal/external/both) External
• Insert Clamping System (ICS) Top Clamp
