Seco Top Clamp Right - P Type - V Insert Shape - SECO

Description

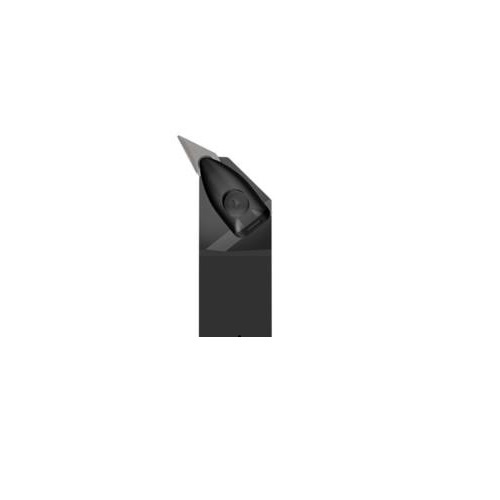

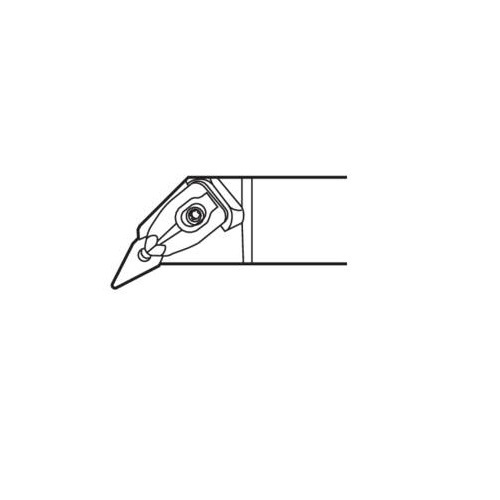

Seco Turning External Toolholder Top Clamp Right 117.5° V Insert Shape DVPNR2020K16

Turning External Toolholder (Top Clamp - P Type - V Insert Shape)

Top clamp using the center hole.
V insert shape.
P tool type, straight shank with 27.5° side cutting edge angle.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0115059

Brand Seco

Model Number 02588222

Barcode Number 88222025000102

Net Weight (kg) 0.407

Designation DVPNR2020K16

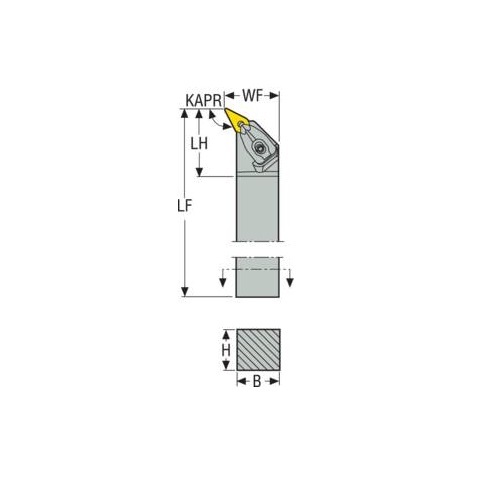

Functional Length (LF) 125mm

Insert Shape Code (SC) V

Head Length (LH) 42mm

Functional Width (WF) mm 25

Cutting Edge Length (mm) 16

Inclination Angle (LAMS) -13.5 deg

Tool Cutting Edge Angle Code (KAPRC) P

Tool Type P Type

Height Of Tool Holder Shank (H) mm 20

Tool Cutting Edge Angle (KAPR) 117.5 deg

Connection Text Workpiece Side (ctws) VN1604

Shank Width (b) mm 20

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2020

Rake Angle Orthogonal (gamo) -4.5 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
