Seco Top Clamp Right - S Type - S Insert Shape - 12mm Cutting Edge Length - SECO

Description

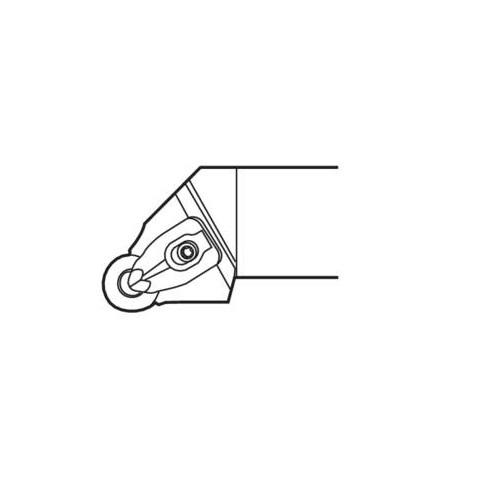

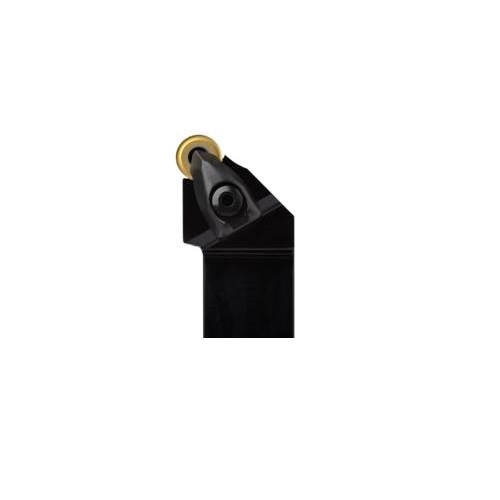

Seco Turning External Toolholder Top Clamp Right 45° R Insert Shape DRSNR2525M12-M

Turning External Toolholder (Top Clamp - S Type - R Insert Shape - M Surface - 12mm Cutting Edge Length)

Top clamp using the center hole.
R insert shape.
S tool type, offset shank with 45° side cutting edge angle.
12mm cutting edge length.
M surface, qualified front, and end. 4” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114947

Brand Seco

Model Number 02588153

Barcode Number 88153025000109

Net Weight (kg) 0.716

Designation DRSNR2525M12-M

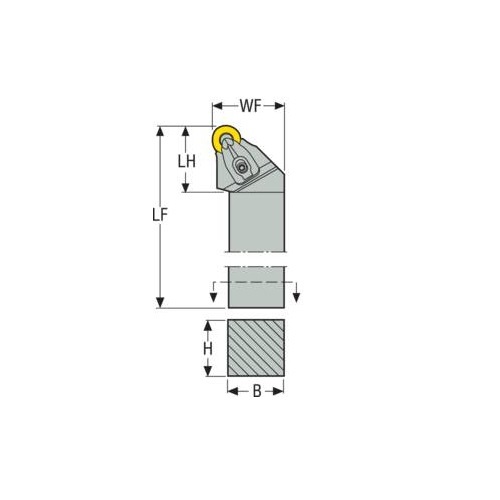

Functional Length (LF) 150mm

Insert Shape Code (SC) R

Head Length (LH) 30mm

Functional Width (WF) mm 32

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) S

Tool Type S Type

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 45.0 deg

Connection Text Workpiece Side (ctws) RN1204

Shank Width (b) mm 25

Direction Of Cutting (hand) Right

Connection Text Machine Side (CTMS) 2525

Rake Angle Orthogonal (gamo) -6.0 deg

Type Turning Toolholder
Shank Type Square shank
Version (internal/external/both) External
Insert Clamping System (ICS) Top Clamp
