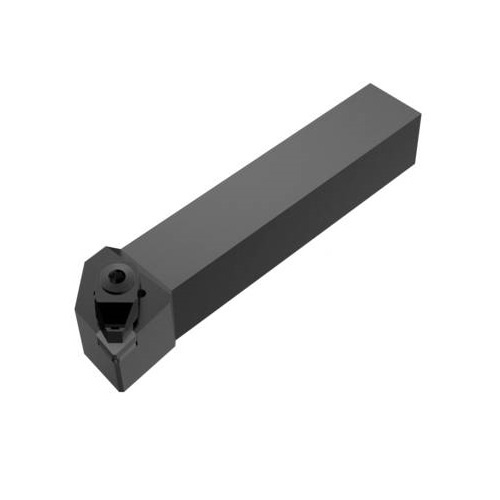

Seco Turning External Toolholder Clamp Lock 150 x 32 x 12mm Left 95° C Insert Shape CCLNL2525M12-4C

Description

Seco Turning External Toolholder Clamp Lock 150 x 32 x 12mm Left 95° C Insert Shape CCLNL2525M12-4C

Turning External Toolholder (Clamp Lock - L Type - C Insert Shape - C Surface)

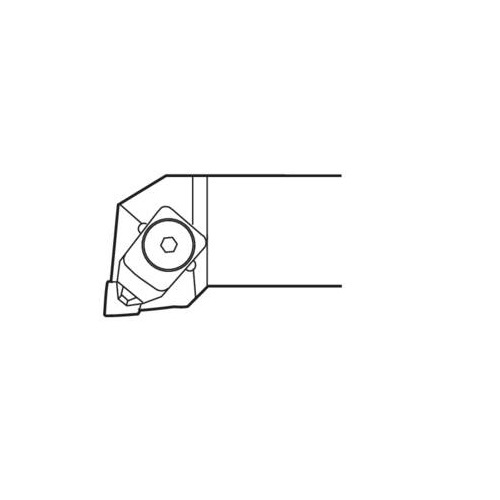

Clamp lock assembly.
C insert shape.
L tool type, offset shank with –5° end or side cutting edge.
C surface qualified back and end, and length 5” long.

About Shank Toolholders and Boring Bars:

Seco’s incredibly diverse ranges of holders for general turning allow us to provide ideal solutions to your specific applications.
Whatever your material, set up, part requirements and machine capabilities, our expansive selection ensure a perfect match to your needs.
This wide offering of the easily applicable shank and boring bar tool holders adds another level of reliability and productivity to lathe machining.
The range of ISO and ANSI tool holders accommodates a comprehensive range of insert types, shapes, and sizes, also allowing the choice of several leading clamping methods.

Specifications

AIMS SKU A0114749

Brand Seco

Model Number 02926471

Barcode Number 26471029000100

Net Weight (kg) 0.687

Designation CCLNL2525M12-4C

Type Turning Toolholder

Insert Clamping System (ICS) Clamp Lock

Shank Type Square shank

Insert Shape Code (SC) C

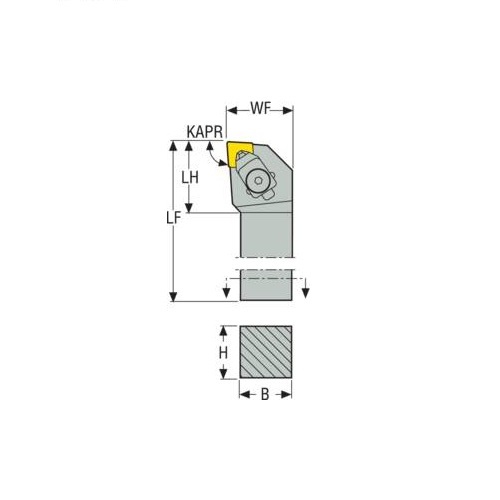

Head Length (LH) 32mm

Functional Width (WF) mm 32.4

Cutting Edge Length (mm) 12

Inclination Angle (LAMS) -6.0 deg

Tool Cutting Edge Angle Code (KAPRC) L

Tool Type L Type

Functional Length (LF) 150mm

Rake Angle Orthogonal (gamo) -6.0 deg

Shank Length (LS) mm 119.1

Height Of Tool Holder Shank (H) mm 25

Tool Cutting Edge Angle (KAPR) 95.0 deg

Connection Text Workpiece Side (ctws) CN1207

Shank Width (b) mm 25

Version (internal/external/both) External

Direction Of Cutting (hand) Left

Connection Text Machine Side (CTMS) 2525
